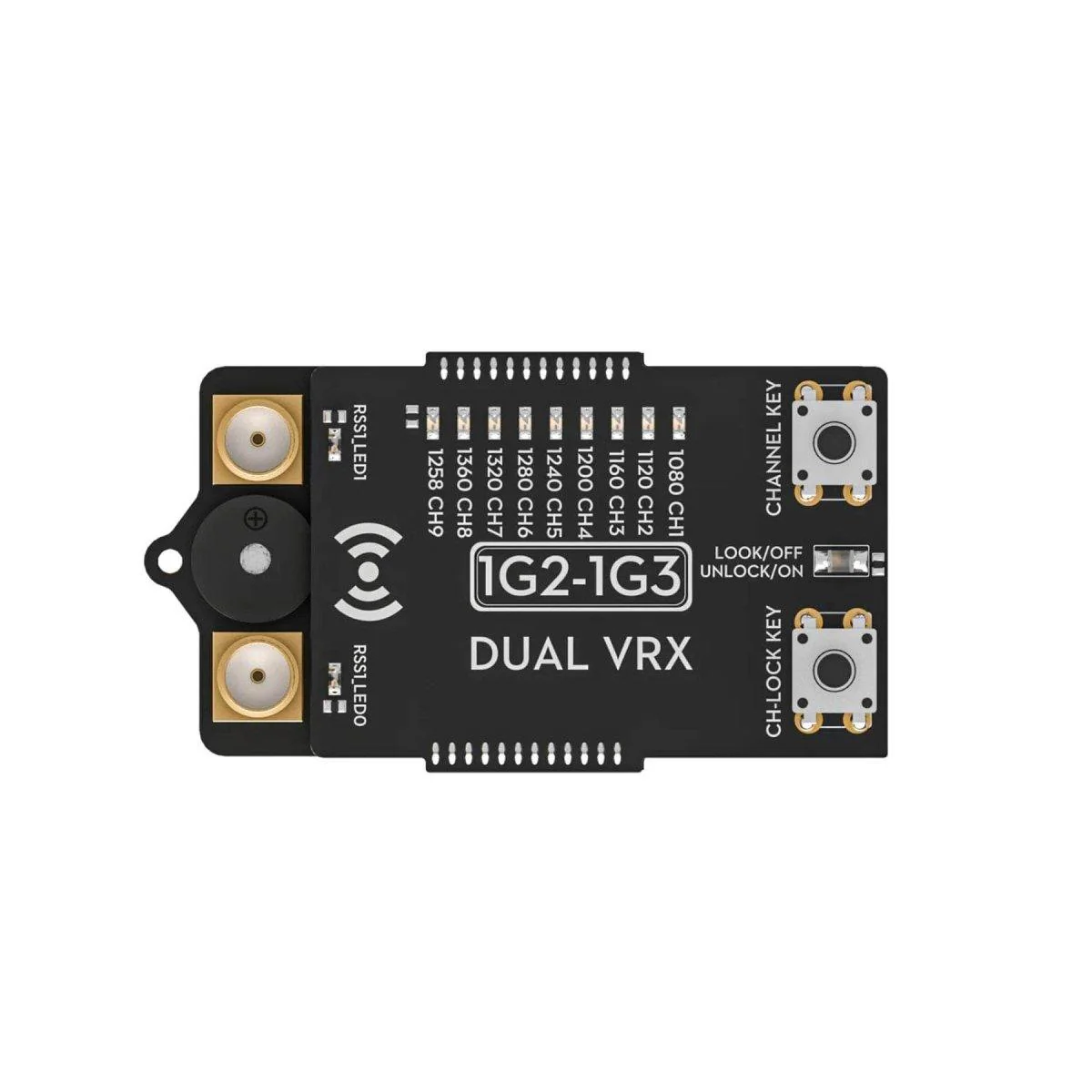

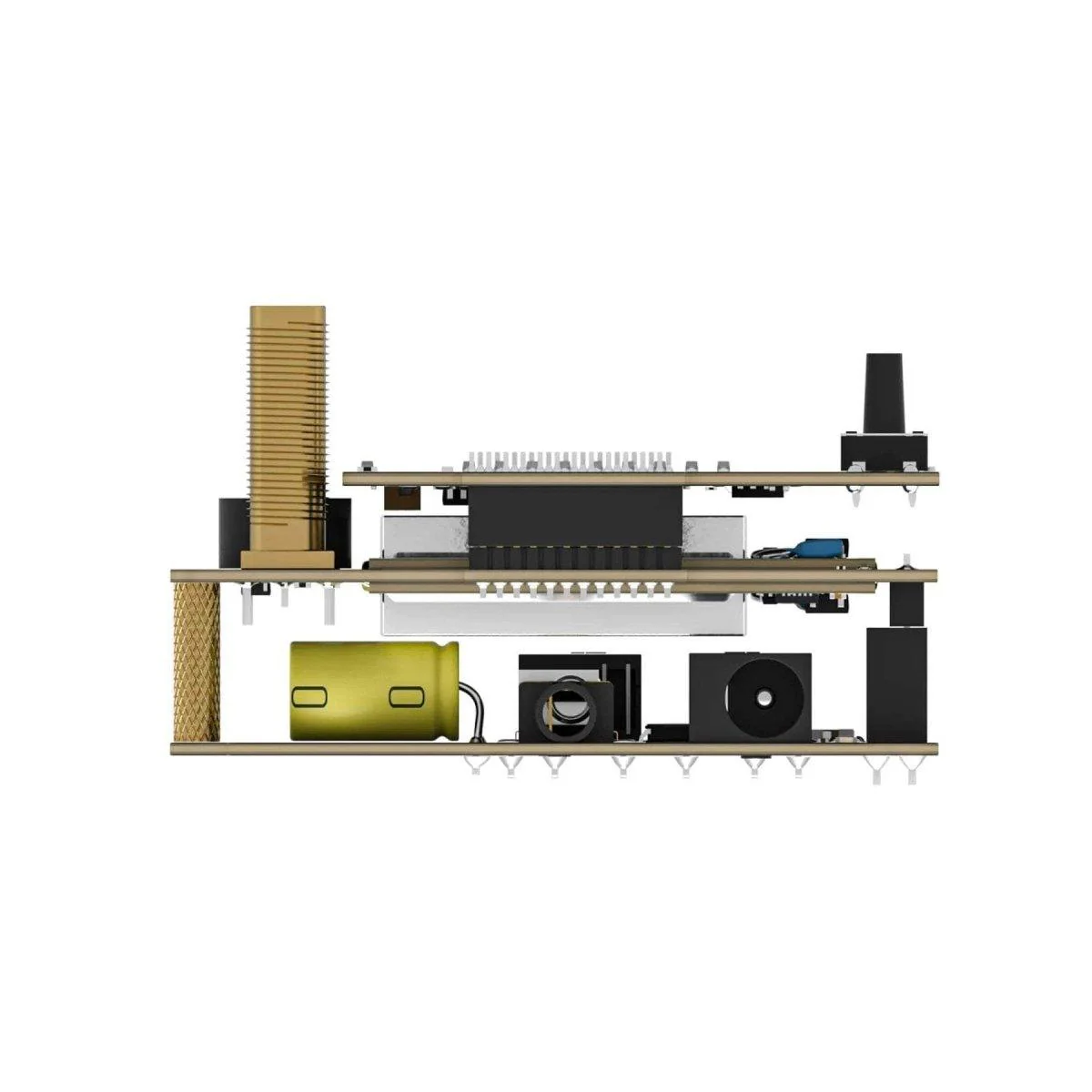

Flywoo VRX 1G2-1G3 Dual 9CH 1.2/1.3GHz Analog Goggle Receiver Module (Compatible with DJI Goggles V2)

Flywoo 1G2-1G3 VRX boasts a wide 9CH range from 1080-1360MHz and two Y-shaped 1.2G antennas for stable signal connectivity. Alongside, the included Notch Filter (868/915 MHz) which filters out other similar frequencies for clear FPV visuals. Compatible with DJI V2 goggles, allowing for a high-quality video feed and an immersive flying experience.

Check out our FPV Wing Gear, as well as the rest of our Flywoo selection!

Features

  • Wide Receiving Frequency Range: The FLYWOO1.2/1.3GHz Dual VRX Video Receiver has a receiving frequency range of 9CH, covering a wide range from 1080MHz to 1360MHz.
  • Dual Antenna Design: With two Y-shaped 1.2G antennas, the Flywoo receiver module ensures stable and reliable signal reception for an uninterrupted FPV experience.
  • Notch Filter Included: The FLYWOO 1.2GHz VRX Notch Filter (868/915 MHz) included in the box helps eliminate interference from other devices operating at similar frequencies, ensuring a clear video feed.
  • Compatible with DJI V2 goggles: The FLYWOO 1.2/1.3GHz Dual VRX Video Receiver is compatible with DJI V2 goggles, allowing for a high-quality video feed and an immersive flying experience.

Specifications

  • Receiving Frequency: 9CH (1080MHz to 1360MHz)
  • RX Sensitivity: -95dBm
  • Dual Input: 7-26V/2-6S
  • Button Control: Lock and Select Frequency
  • Channel LED: 9CH LED
  • RSSI LEDs: RSSI0/RSSI1
  • Regulator Output: 5V 2A
  • Current Consumption: 0.4A @5V/0.2A @12V
  • Video Format: NTSC or PAL
  • Video Output Impedance: 75Ω, Typ.
  • Audio Subcarrier Frequency: 6.5MHz & 6.0MHz
  • ANT. Input Impedance: 50Ω, Typ.
  • RF Connector: SMA

Product User Guide

  • Press and hold the LOCK button for 3 seconds to unlock the channel. The UNLOCK LED will light up and the buzzer will sound once.
  • Press the CHANNEL button to select the frequency. The LED will light up and the buzzer will sound once.
  • The RSSI0/RSSI1 LEDs respectively display the signal strength of the two receiver modules.
  • The new frequency will be saved if no button action is taken within 3 seconds.

    Includes

    • 1x Flywoo VRX 1G2-1G3 Dual 9CH 1.2/1.3GHz Analog Goggle Receiver Module (Compatible with DJI Goggles V2)
    • 2x Flywoo 1.2GHz VRX Notch Filter (868/915 MHz)
    • 2x Flywoo 1.2GHz Antennas
    • 1x Power Cable
    • 1x Video Cable

    Flywoo 1G2-1G3 VRX boasts a wide 9CH range from 1080-1360MHz and two Y-shaped 1.2G antennas for stable signal connectivity. Alongside, the included Notch Filter (868/915 MHz) which filters out other similar frequencies for clear FPV visuals. Compatible with DJI V2 goggles, allowing for a high-quality video feed and an immersive flying experience.

    Check out our FPV Wing Gear, as well as the rest of our Flywoo selection!

    Features

    • Wide Receiving Frequency Range: The FLYWOO1.2/1.3GHz Dual VRX Video Receiver has a receiving frequency range of 9CH, covering a wide range from 1080MHz to 1360MHz.
    • Dual Antenna Design: With two Y-shaped 1.2G antennas, the Flywoo receiver module ensures stable and reliable signal reception for an uninterrupted FPV experience.
    • Notch Filter Included: The FLYWOO 1.2GHz VRX Notch Filter (868/915 MHz) included in the box helps eliminate interference from other devices operating at similar frequencies, ensuring a clear video feed.
    • Compatible with DJI V2 goggles: The FLYWOO 1.2/1.3GHz Dual VRX Video Receiver is compatible with DJI V2 goggles, allowing for a high-quality video feed and an immersive flying experience.

    Specifications

    • Receiving Frequency: 9CH (1080MHz to 1360MHz)
    • RX Sensitivity: -95dBm
    • Dual Input: 7-26V/2-6S
    • Button Control: Lock and Select Frequency
    • Channel LED: 9CH LED
    • RSSI LEDs: RSSI0/RSSI1
    • Regulator Output: 5V 2A
    • Current Consumption: 0.4A @5V/0.2A @12V
    • Video Format: NTSC or PAL
    • Video Output Impedance: 75Ω, Typ.
    • Audio Subcarrier Frequency: 6.5MHz & 6.0MHz
    • ANT. Input Impedance: 50Ω, Typ.
    • RF Connector: SMA

    Product User Guide

    • Press and hold the LOCK button for 3 seconds to unlock the channel. The UNLOCK LED will light up and the buzzer will sound once.
    • Press the CHANNEL button to select the frequency. The LED will light up and the buzzer will sound once.
    • The RSSI0/RSSI1 LEDs respectively display the signal strength of the two receiver modules.
    • The new frequency will be saved if no button action is taken within 3 seconds.

      Includes

      • 1x Flywoo VRX 1G2-1G3 Dual 9CH 1.2/1.3GHz Analog Goggle Receiver Module (Compatible with DJI Goggles V2)
      • 2x Flywoo 1.2GHz VRX Notch Filter (868/915 MHz)
      • 2x Flywoo 1.2GHz Antennas
      • 1x Power Cable
      • 1x Video Cable
