GEPRC F411 2-6S AIO Toothpick / Whoop Flight Controller w/ 35A 4in1 ESC

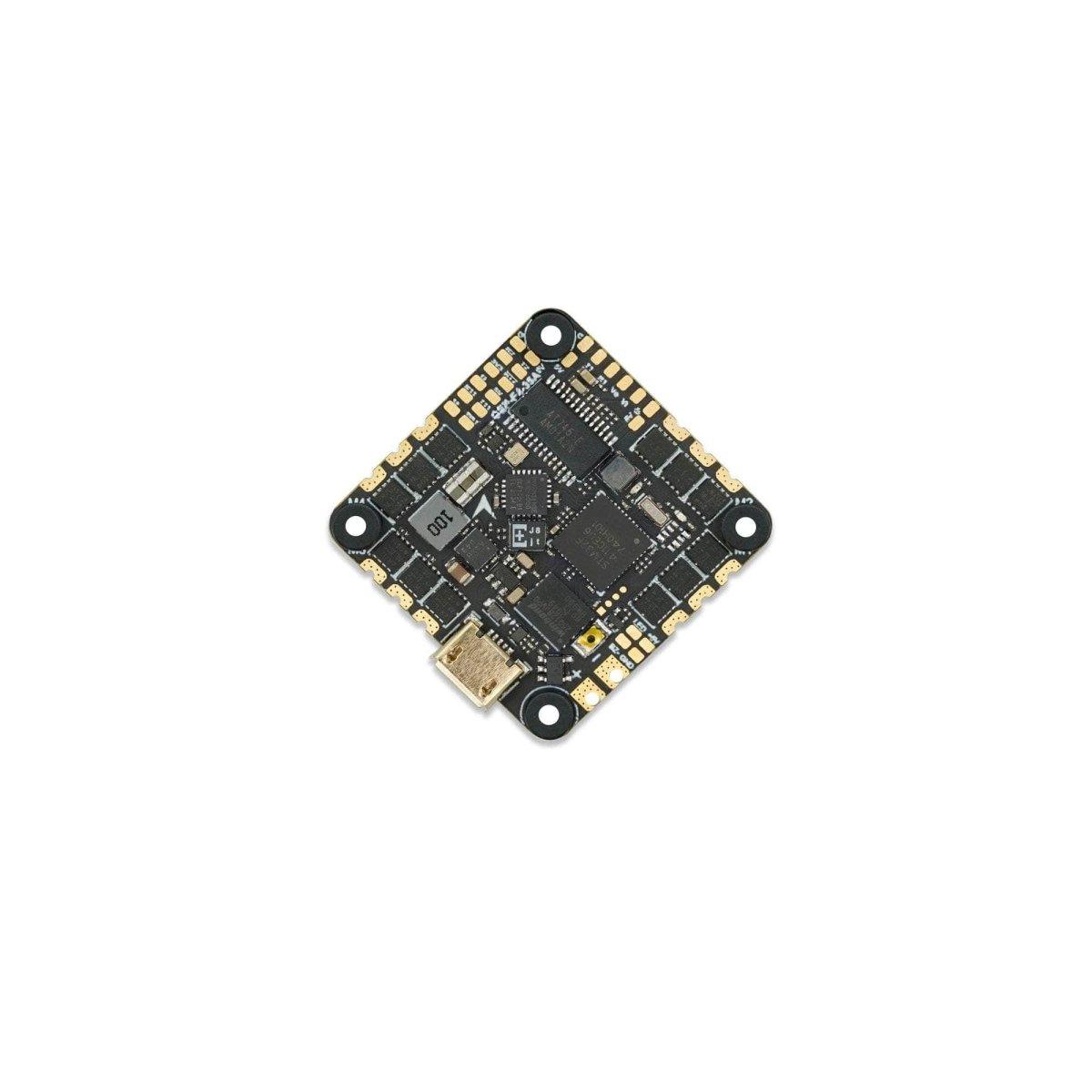

Product image 1
1 / 5

GEPRC F411 2-6S AIO Toothpick / Whoop Flight Controller w/ 35A 4in1 ESC

GEP-F4-35A is developed on the basis of GEP-F4-20A. It can handle 35A continuous current and (40A burst) and totally supports the 2-6S lipo battery. It can be used with 1204/1404/1507/1805/2004 motors and 2-5 inch propellers. It supports OSD parameter adjustments. And It’s only 8.8g ultra-lightweight. With 25.5mm x 25.5mm mounting holes, this AIO is suitable for most of the frames on the market.


Check out all our whoop flight controllers, and our GEPRC products!

Features

  • BLheli_ S 35A ESC, supports 2-6S LIPO battery input, it can handle 35A continuous current (40A burst), with a current meter.
  • Mainstream STM32F411 FC runs stably.
  • BMI270 gyroscope with 8K sampling frequency.
  • External Buzzer: Support
  • LED Control: Support
  • The overall weight is about 8.8g

Specifications

  • Model Name: GEP-F411-35A AIO
  • MCU: STM32F411
  • IMU: BMI270 gyro/accelerometer (SPI)
  • FC Firmware target: GEPRC_F411_AIO
  • OSD: BetaFlight OSD w/ AT7456E chip
  • Baro: NO
  • Current Monitoring: Yes
  • Betaflight OSD: Yes
  • External Buzzer: Yes supported
  • LED: Yes Supported
  • USB Port: MicroUSB
  • BEC Output: 5V@1A
  • Integrated LC Filter
  • ESC MCU: 8BB21F16G
  • Continuous current: 35A
  • Peak current: 40A(10s)
  • Input: 2-6S lipo
  • Supports Dshot300/600, Oneshot, Multishot
  • Current meter: 210
  • Target: G_H_30 BLS
  • Size: 32x32mm board,25.5mm mounting holes (M2)
  • Installing Hole: 25.5×25.5mm, M2

Manual PDF

Includes

  • 1 x GEP-F4-35A-AIO
  • 1 x XT30-7CM-18AWG cables
  • 1 x 35V220UF capacitance
  • 8 x M2*6.5mm Damping rings


GEP-F4-35A is developed on the basis of GEP-F4-20A. It can handle 35A continuous current and (40A burst) and totally supports the 2-6S lipo battery. It can be used with 1204/1404/1507/1805/2004 motors and 2-5 inch propellers. It supports OSD parameter adjustments. And It’s only 8.8g ultra-lightweight. With 25.5mm x 25.5mm mounting holes, this AIO is suitable for most of the frames on the market.


Check out all our whoop flight controllers, and our GEPRC products!

Features

  • BLheli_ S 35A ESC, supports 2-6S LIPO battery input, it can handle 35A continuous current (40A burst), with a current meter.
  • Mainstream STM32F411 FC runs stably.
  • BMI270 gyroscope with 8K sampling frequency.
  • External Buzzer: Support
  • LED Control: Support
  • The overall weight is about 8.8g

Specifications

  • Model Name: GEP-F411-35A AIO
  • MCU: STM32F411
  • IMU: BMI270 gyro/accelerometer (SPI)
  • FC Firmware target: GEPRC_F411_AIO
  • OSD: BetaFlight OSD w/ AT7456E chip
  • Baro: NO
  • Current Monitoring: Yes
  • Betaflight OSD: Yes
  • External Buzzer: Yes supported
  • LED: Yes Supported
  • USB Port: MicroUSB
  • BEC Output: 5V@1A
  • Integrated LC Filter
  • ESC MCU: 8BB21F16G
  • Continuous current: 35A
  • Peak current: 40A(10s)
  • Input: 2-6S lipo
  • Supports Dshot300/600, Oneshot, Multishot
  • Current meter: 210
  • Target: G_H_30 BLS
  • Size: 32x32mm board,25.5mm mounting holes (M2)
  • Installing Hole: 25.5×25.5mm, M2

Manual PDF

Includes

  • 1 x GEP-F4-35A-AIO
  • 1 x XT30-7CM-18AWG cables
  • 1 x 35V220UF capacitance
  • 8 x M2*6.5mm Damping rings


$106,209.43

Original: $354,031.45

-70%
GEPRC F411 2-6S AIO Toothpick / Whoop Flight Controller w/ 35A 4in1 ESC—

$354,031.45

$106,209.43

Description

GEP-F4-35A is developed on the basis of GEP-F4-20A. It can handle 35A continuous current and (40A burst) and totally supports the 2-6S lipo battery. It can be used with 1204/1404/1507/1805/2004 motors and 2-5 inch propellers. It supports OSD parameter adjustments. And It’s only 8.8g ultra-lightweight. With 25.5mm x 25.5mm mounting holes, this AIO is suitable for most of the frames on the market.


Check out all our whoop flight controllers, and our GEPRC products!

Features

  • BLheli_ S 35A ESC, supports 2-6S LIPO battery input, it can handle 35A continuous current (40A burst), with a current meter.
  • Mainstream STM32F411 FC runs stably.
  • BMI270 gyroscope with 8K sampling frequency.
  • External Buzzer: Support
  • LED Control: Support
  • The overall weight is about 8.8g

Specifications

  • Model Name: GEP-F411-35A AIO
  • MCU: STM32F411
  • IMU: BMI270 gyro/accelerometer (SPI)
  • FC Firmware target: GEPRC_F411_AIO
  • OSD: BetaFlight OSD w/ AT7456E chip
  • Baro: NO
  • Current Monitoring: Yes
  • Betaflight OSD: Yes
  • External Buzzer: Yes supported
  • LED: Yes Supported
  • USB Port: MicroUSB
  • BEC Output: 5V@1A
  • Integrated LC Filter
  • ESC MCU: 8BB21F16G
  • Continuous current: 35A
  • Peak current: 40A(10s)
  • Input: 2-6S lipo
  • Supports Dshot300/600, Oneshot, Multishot
  • Current meter: 210
  • Target: G_H_30 BLS
  • Size: 32x32mm board,25.5mm mounting holes (M2)
  • Installing Hole: 25.5×25.5mm, M2

Manual PDF

Includes

  • 1 x GEP-F4-35A-AIO
  • 1 x XT30-7CM-18AWG cables
  • 1 x 35V220UF capacitance
  • 8 x M2*6.5mm Damping rings
