GNB 1S 3.8V HV 850mah 60C Plastic Head GNB27 LiPo Battery
|
Model No. |
GNB8501S60PHV |
|
Capacity |
850mAh |
|
Configuration |
1S1P |
|
Nominal Voltage |
3.8V |
|

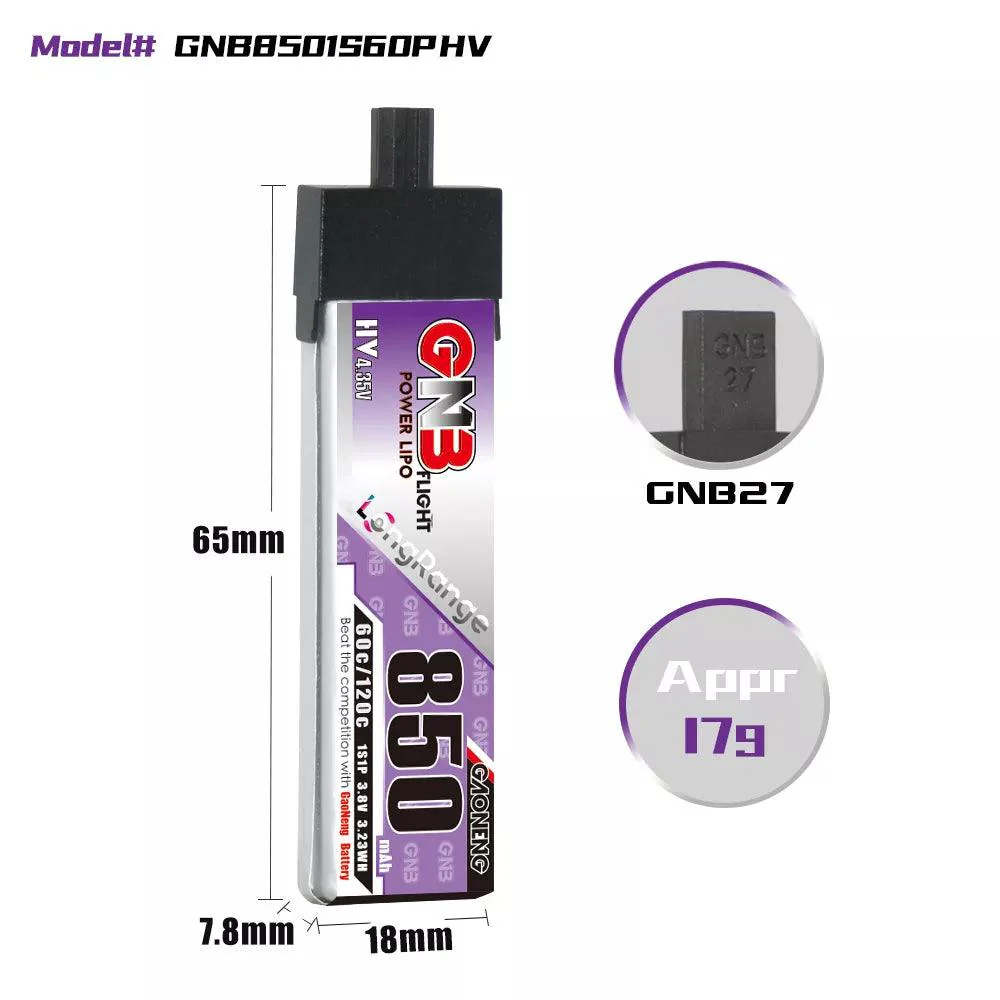

Dimension |
7.8*18*65mm Appr. |
|
Weight |
17g (+/-1g) |
|
Max cont. discharge (C-rate/current) |
60C |
|
Max Burst (C-rate/current) |
120C |
|
Charge Connector |
GNB27 |
|
Discharge Connector |
GNB27 |
|
Working Temperature Charge |
0~45°C |
|
Working Temperature Discharge |
(-20~60°C) |
|
Working Humility |
65%RH +/-20% |
|
Storage Temperature |
(-20~35°C) |
|
Storage Humility |
65%RH +/-20% |
|
Life Cycle |
300+ times |
|
Model No. |
GNB8501S60PHV |
|
Capacity |
850mAh |
|
Configuration |
1S1P |
|
Nominal Voltage |
3.8V |
|
Dimension |
7.8*18*65mm Appr. |
|
Weight |
17g (+/-1g) |
|
Max cont. discharge (C-rate/current) |
60C |
|
Max Burst (C-rate/current) |
120C |
|
Charge Connector |
GNB27 |
|
Discharge Connector |
GNB27 |
|
Working Temperature Charge |
0~45°C |
|
Working Temperature Discharge |
(-20~60°C) |
|
Working Humility |
65%RH +/-20% |
|
Storage Temperature |
(-20~35°C) |
|
Storage Humility |
65%RH +/-20% |
|
Life Cycle |
300+ times |
Description
|
Model No. |
GNB8501S60PHV |
|
Capacity |
850mAh |
|
Configuration |
1S1P |
|
Nominal Voltage |
3.8V |
|
Dimension |
7.8*18*65mm Appr. |
|
Weight |
17g (+/-1g) |
|
Max cont. discharge (C-rate/current) |
60C |
|
Max Burst (C-rate/current) |
120C |
|
Charge Connector |
GNB27 |
|
Discharge Connector |
GNB27 |
|
Working Temperature Charge |
0~45°C |
|
Working Temperature Discharge |
(-20~60°C) |
|
Working Humility |
65%RH +/-20% |
|
Storage Temperature |
(-20~35°C) |
|
Storage Humility |
65%RH +/-20% |
|
Life Cycle |
300+ times |
