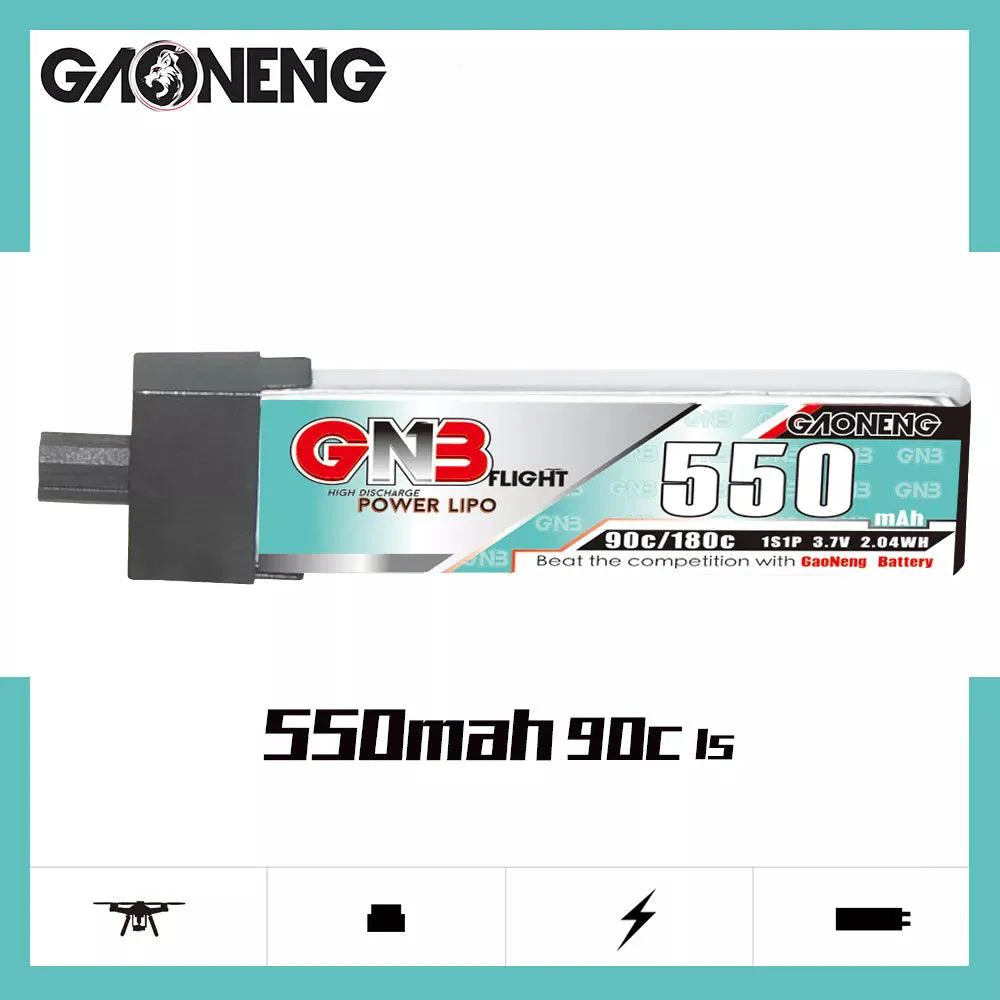

GNB 1S 550MAH 3.7V 90C GNB27 Plug Plastic Head LiPo Battery
|
Model No. |
GNB5501S90P |
|
Capacity |
550mAh |
|
Configuration |
1S1P |
|
Nominal Voltage |
3.7V |
|
Dimension |
6*18*65mm Appr. |
|
Weight |
13.5g (+/-0.5g) |
|
Max cont. discharge (C-rate/current) |
90C |
|
Max Burst (C-rate/current) |
180C |
|
Charge Connector |
GNB27 |
|
Discharge Connector |
GNB27 |
|
Working Temperature Charge |
0~45°C |
|
Working Temperature Discharge |
(-20~60°C) |
|
Working Humility |
65%RH +/-20% |
|
Storage Temperature |
(-20~35°C) |
|
Storage Humility |
65%RH +/-20% |
|
Life Cycle |
300+ times |
|
Model No. |
GNB5501S90P |
|
Capacity |
550mAh |
|
Configuration |
1S1P |
|
Nominal Voltage |
3.7V |
|
Dimension |
6*18*65mm Appr. |
|
Weight |
13.5g (+/-0.5g) |
|
Max cont. discharge (C-rate/current) |
90C |
|
Max Burst (C-rate/current) |
180C |
|
Charge Connector |
GNB27 |
|
Discharge Connector |
GNB27 |
|
Working Temperature Charge |
0~45°C |
|
Working Temperature Discharge |
(-20~60°C) |
|
Working Humility |
65%RH +/-20% |
|
Storage Temperature |
(-20~35°C) |
|
Storage Humility |
65%RH +/-20% |
|
Life Cycle |
300+ times |
Description
|
Model No. |
GNB5501S90P |
|
Capacity |
550mAh |
|
Configuration |
1S1P |
|
Nominal Voltage |
3.7V |
|
Dimension |
6*18*65mm Appr. |
|
Weight |
13.5g (+/-0.5g) |
|
Max cont. discharge (C-rate/current) |
90C |
|
Max Burst (C-rate/current) |
180C |
|
Charge Connector |
GNB27 |
|
Discharge Connector |
GNB27 |
|
Working Temperature Charge |
0~45°C |
|
Working Temperature Discharge |
(-20~60°C) |
|
Working Humility |
65%RH +/-20% |
|
Storage Temperature |
(-20~35°C) |
|
Storage Humility |
65%RH +/-20% |
|
Life Cycle |
300+ times |
