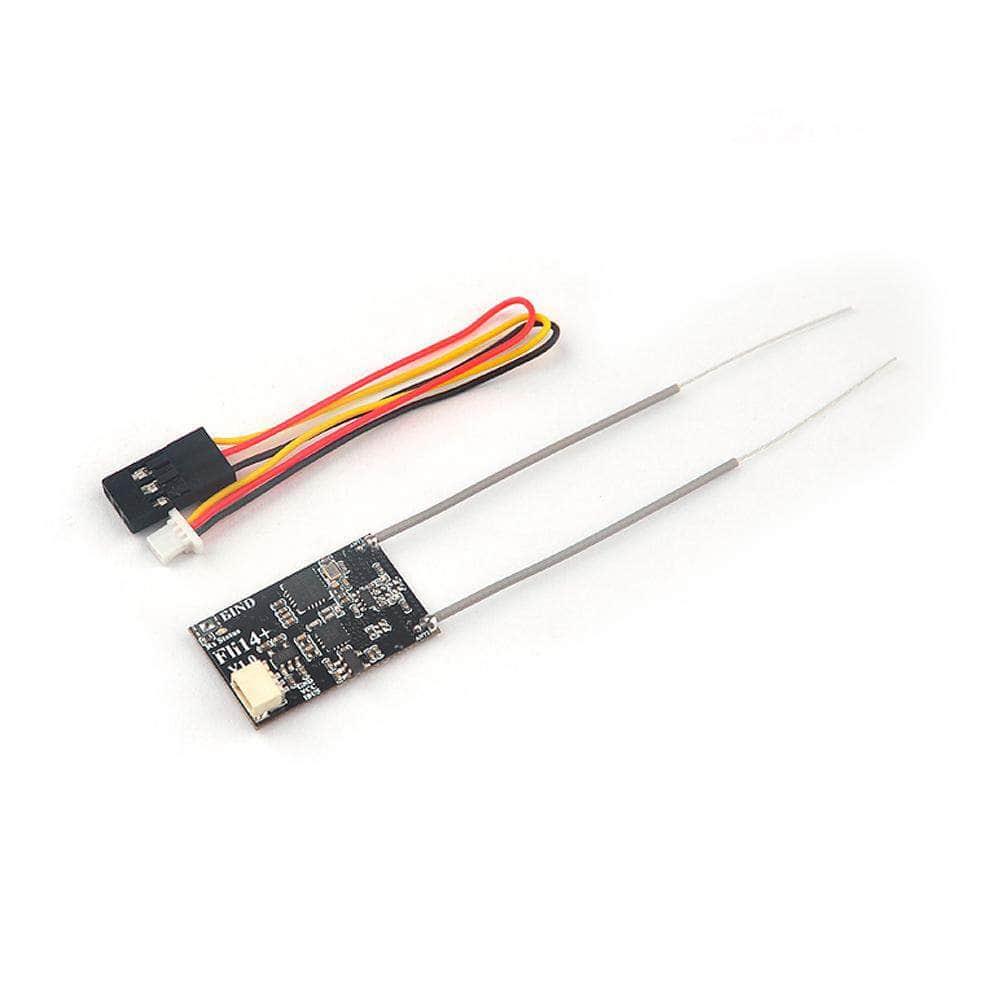

Considered by many to be the best FlySky compatible receiver out there for quads, the Fli14+ offers dual antennas, telemetry, and RSSI over CH14. It's a solid value RX for FlySky users!

Check out all our receivers, FlySky compatible gear, and our Happymodel product selection!

Features

• Customized for Betaflight
• RSSI Display Via OSD without any hack compatible with all Flysky AFHDS-2A protocol transmitter
• Telemetry output :RSSI & RX Battery
• Support RSSI Via Channel14(Aux10 in Betaflight)
• Best for FPV Racing drone
• Compatible with FS-i4, FS-i6,FS-I6X,FS-i6S, FS-i10,FS-iT4S, Eachine I6,Turnigy I6S, Turnigy Evolution

Specifications

• Channel: 14
• Protocol: AFHDS-2A
• 2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
• Antenna Length: 70mm  (Dual antennas)
• Input Power: 4.0-6.5V DC
• Weight: Only 1.7g
• Size: 25mm*15mm*5mm
• Color: Black
• Signal Output: IBUS
• RSSI Output: Channel14
• No ground interference ( Transmitting and receiving 1 m from the ground): >500m

Binding Procedure

• 1. Power for the Fli14 Receiver while press and holding the bind button
• 2. The LED will blinking fast , this indicates the receiver is in binding mode
• 3. Get the Flysky transmitter into binding mode , the LED on the receiver will getting to be solid and this indicates binding successfully

Includes

• 1x HappyModel FLI14 Plus FlySky Compatible Receiver
