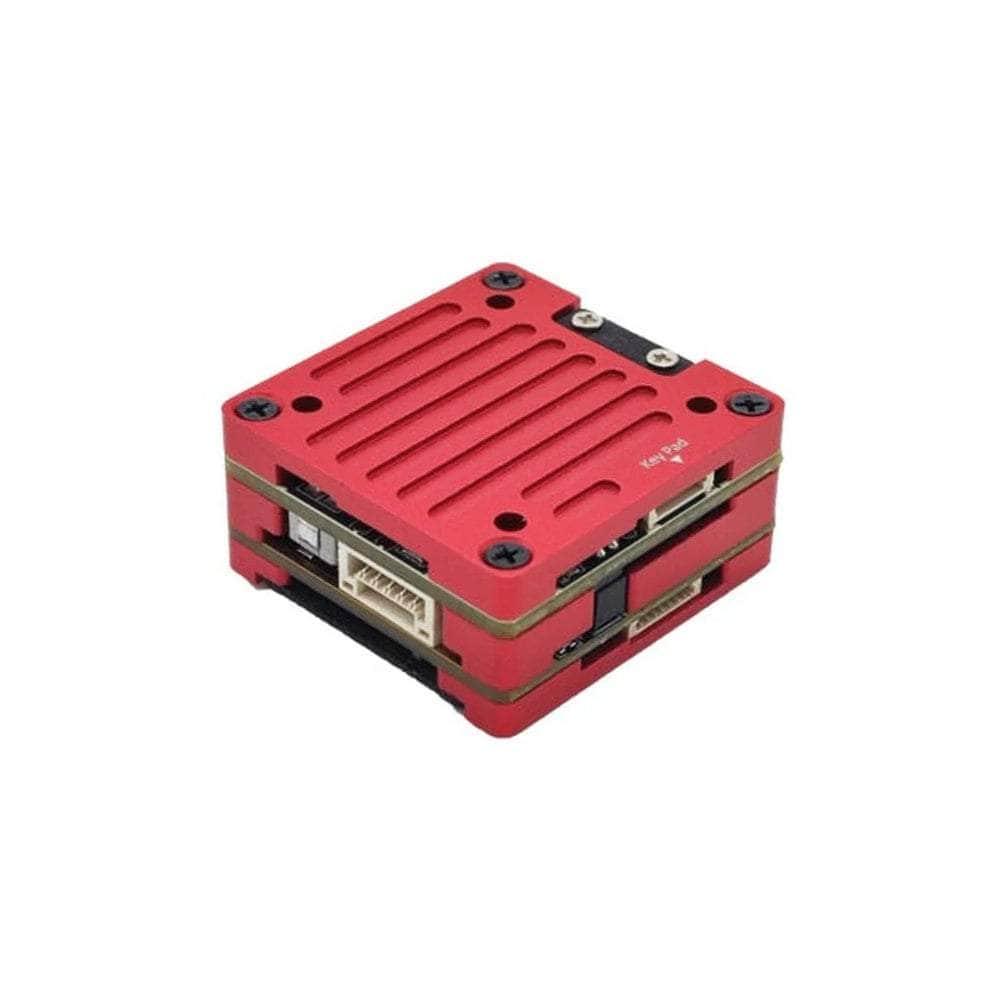

HDZero Freestyle V2 20x20 25-1000mW Digital HD VTX - U.FL
HDZero Freestyle V2 VTX is the second generation 5.8GHz digital video transmitter, perfect for most 3.5-inch and 5-inch drones. It comes in a CNC case that guarantees protection and durable RF shielding with improved signal integrity. A wire harness is included for solderless connection for power and MSP UART port. Moreover, the antenna and MIPI cable are secured with a retention bar and screws. This VTX supports 720p60, 1080p30, 540p60, and 540p90 video modes.
This VTX can fit most frames that can accommodate the Caddx Vista/Runcam Link VTX.
Check out all our VTXs and our HDZero selection.
Specification
- Manufacturer: Divimath, Inc
- Model: HDZero Freestyle V2 VTX
- Weight: 22.3g
- Dimensions: 29x30x14mm
- Operating Frequency: 5.725-5.850GHz
- Transmitter Power: 25mW, 200mW, XXXXmW
- Mounting Pattern: 20x20mm M2 Holes
- Antenna Interface: Secured u.FL
- Video In: Secured MIPI
- SmartAudio: YES
- MSP Canvas Mode: YES
- Input Power: 7-25V
- Operating Temperature: 32F-104F (0-40C)
- Power Consumption: 6-15W
Includes
- 1x HDZero Freestyle V2 20x20 25-1000mW Digital HD VTX - U.FL
-
1x Power Cable
-
1x SA Cable
-
1x Plastic bar for MIPI Cable with 3x Screws (M1.4 x 2mm)
-
1x Plastic bar for U.FL with 3x Screws (M1.4 x 8mm)
- 1x Double Sided Tape (29 x 30 x 1mm)
Wiring Diagram
