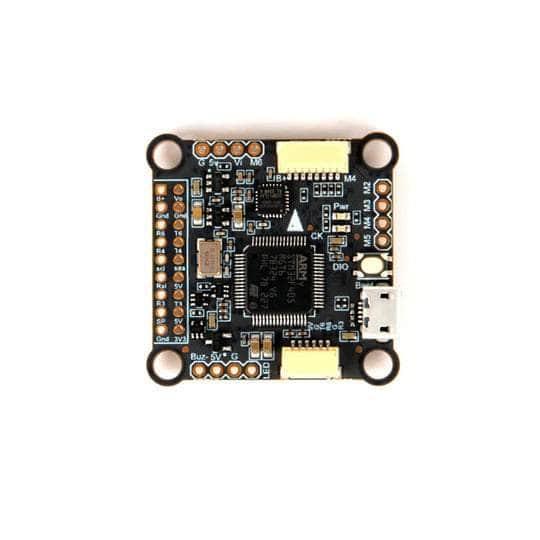

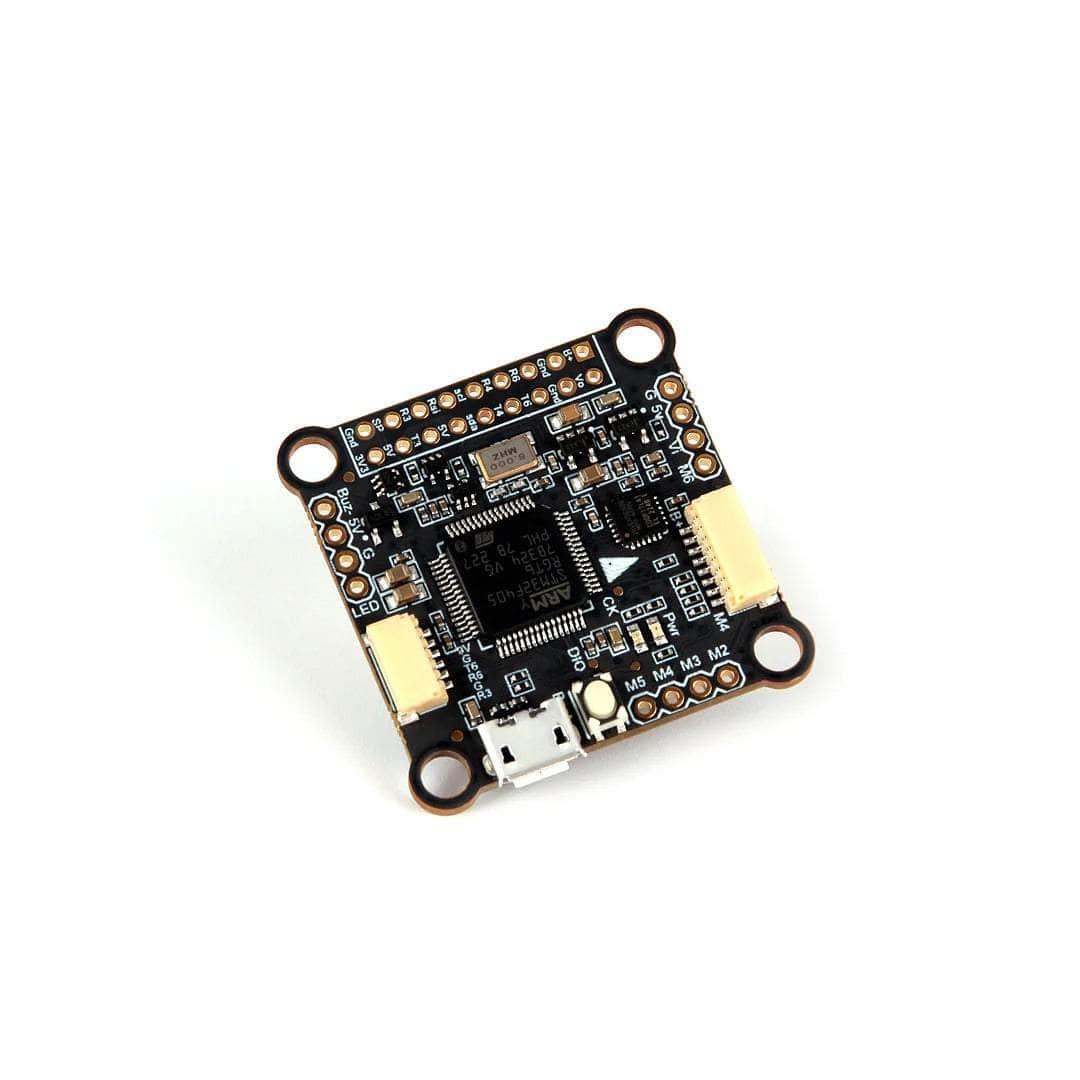

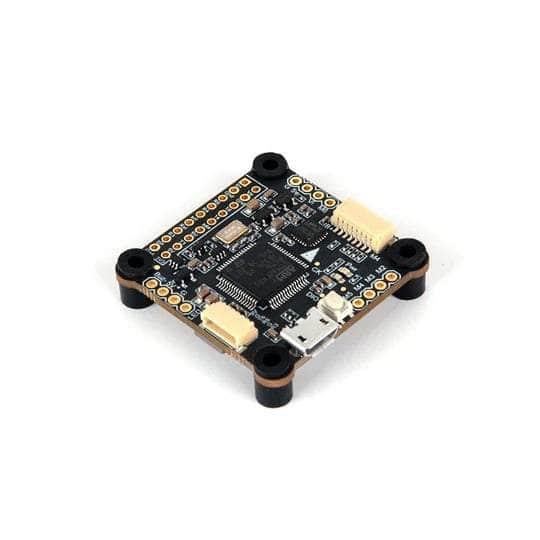

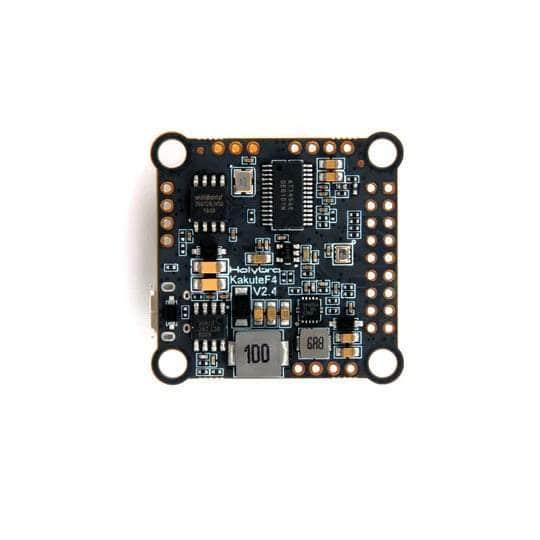

Holybro Kakute F4 HD V2.4 2-8S 30x30 Flight Controller - MP6000
The Kakute F4 V2.4 is an 8S Flight Controller that has everything you need, with plug-and-play DJI O3 HD camera, 4in1 ESC ports, barometer, OSD, 5x UARTs, logging & onboard flash storage, plus 5V & 9V/3A BEC. DJI HD ready - just plug it in & the 9V/A regulator will power your HD transmitter, like DJI O3 Air Unit & Caddx Vista. There are LED & buzzer pad, I2C pad (SDA & SCL) for external GPS/Magnetometers
Check out our other 30x30 flight controllers and the rest of our HolyBro selection!
Specifications
- MCU: STM32F405
- IMU: MPU6000
- Barometer: BMP280
- OSD: AT7456E
- 5x UARTs (1,3,4,4,6,7)
- 128 Mbit Dataflash chip
- Battery input voltage: 2-8S
- BEC 9V/3A - Optimized for DJI O3 Air unit
- BEC 5V/2A
- 7x PWM Outputs (6 Motor Output, 1 LED)
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire, ESLR).
- Mounting: 30 x 30mm, Φ4mm hole with M3 Grommets
- Dimension: 37x37mm
- Weight: 7g
- JST-SH1.0_8pin port (For 4in1 ESCs)
- JST-SH1.0_6pin port (For DJI/Caddx HD System and other VTX)
Includes
The Kakute F4 V2.4 is an 8S Flight Controller that has everything you need, with plug-and-play DJI O3 HD camera, 4in1 ESC ports, barometer, OSD, 5x UARTs, logging & onboard flash storage, plus 5V & 9V/3A BEC. DJI HD ready - just plug it in & the 9V/A regulator will power your HD transmitter, like DJI O3 Air Unit & Caddx Vista. There are LED & buzzer pad, I2C pad (SDA & SCL) for external GPS/Magnetometers
Check out our other 30x30 flight controllers and the rest of our HolyBro selection!
Specifications
- MCU: STM32F405
- IMU: MPU6000
- Barometer: BMP280
- OSD: AT7456E
- 5x UARTs (1,3,4,4,6,7)
- 128 Mbit Dataflash chip
- Battery input voltage: 2-8S
- BEC 9V/3A - Optimized for DJI O3 Air unit
- BEC 5V/2A
- 7x PWM Outputs (6 Motor Output, 1 LED)
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire, ESLR).
- Mounting: 30 x 30mm, Φ4mm hole with M3 Grommets
- Dimension: 37x37mm
- Weight: 7g
- JST-SH1.0_8pin port (For 4in1 ESCs)
- JST-SH1.0_6pin port (For DJI/Caddx HD System and other VTX)
Includes
- 1x Holybro Kakute F4 HD V2.4 2-8S 30x30 Flight Controller - MP6000
- 1x Wiring Kit
Wiring Diagram
