An awesome little AIO from iFlight, Coming with 20A ESCs, DJI ready header for an air unit or Caddx Vista, and a nice open pad layout to get all your peripherals on board!

Browse our Stacks & Combos, and our iFlight gear!

Features

• Support 2-4S battery, new upgraded UARTS ports
• F411 chip is used with high-performance computing speed, making it smoother during flight.

Specifications

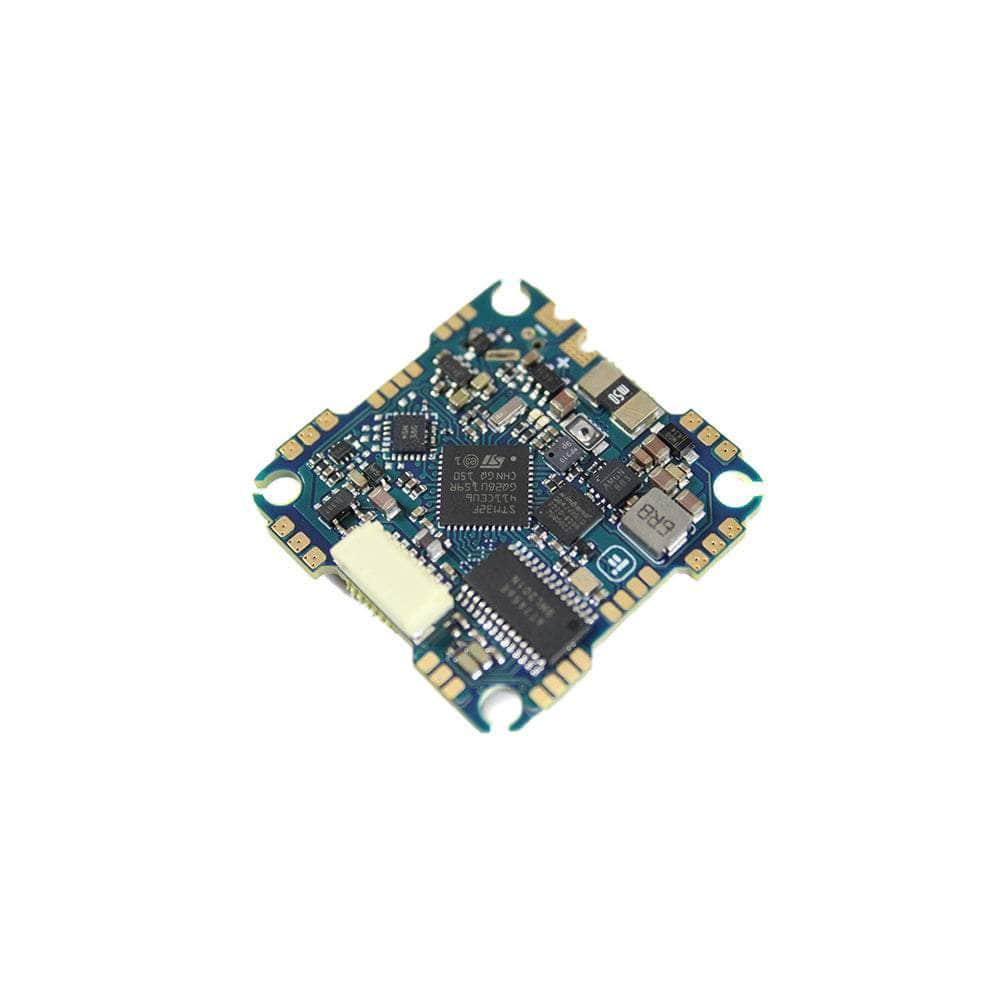

Whoop AIO F4 V1.1 AIO

• Size：30.5x30.5mm

• Mounting pattern：25.5x25.5mm/φ3mm

• Weight: 7.5g

• MCU：STM32F411

• Gyro：BMI270

• Blackbox：8MB

• BEC output: 5V 2A

• Config：IFLIGHT_F411_PRO.config

• INA pad：nR2

• Barometer：No

• Constant current: 20
• Burst Current: 25A
• Input：2-4S

• Current sensor：yes

• BLHeli：BLHeli-S

• ESC Telemetry：no

• Firmware Target：IFLIGHT_F411_PRO

• ESC Firmware: Bluejay Q-H-50



Includes

• 1x Whoop AIO F4 V1.1 AIO Board× 1
• 1x Capacitor UPL 35V 470UF × 1
• 1x XT30 18awg cable

• 1x Wire harness (plug&play) for DJI Air Unit × 1
• 4x M2 silicon grommets × 4
• 4x M2 damping balls x 4
• 4x M2x8mm Screws x 4
