Átto 2.4Ghz Receiver For Ghost Protocol - NDAA

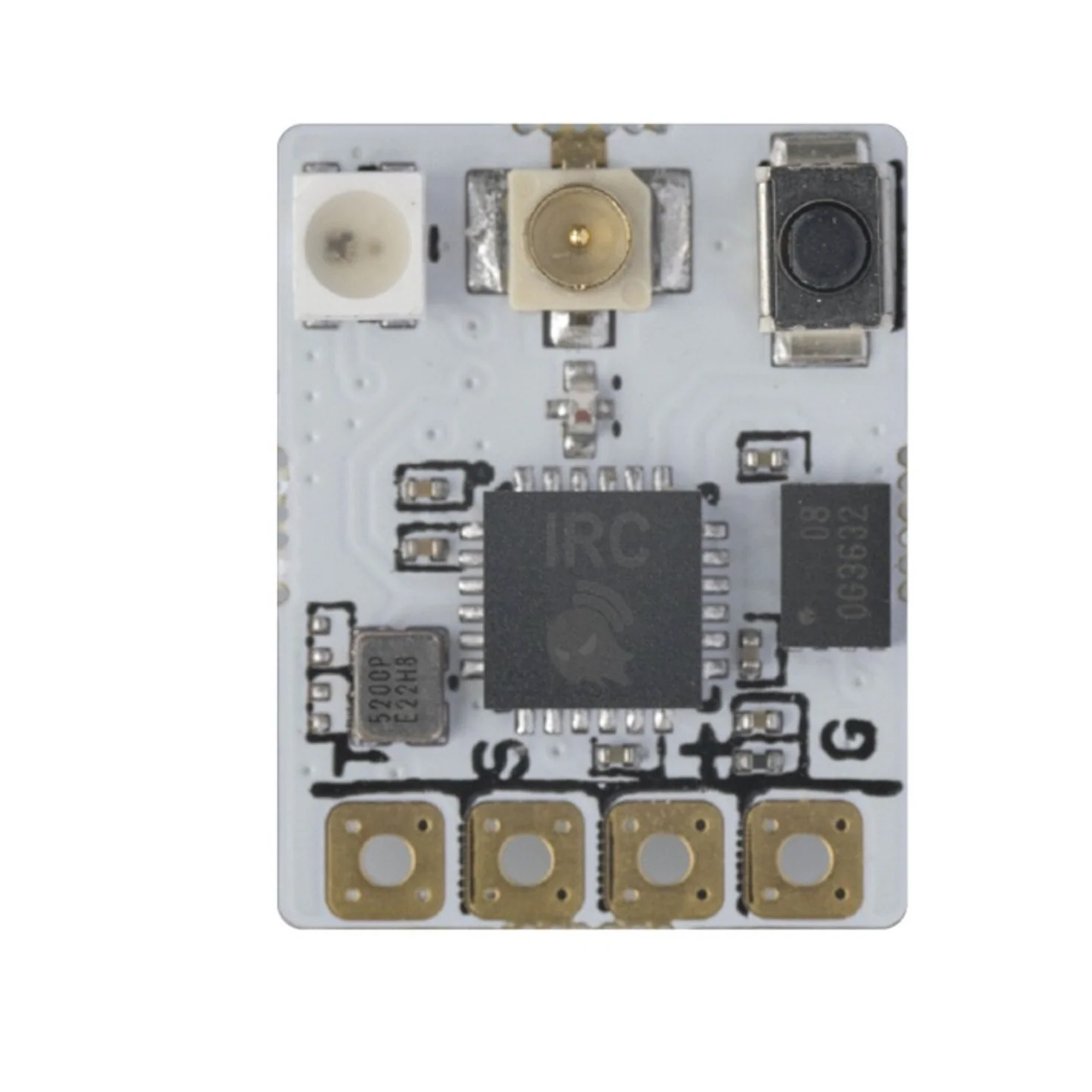

The Ghost Átto receiver weighs in at about 0.6g, and is only 14.8 x 11.5mm, SUPER SMALL.
Most standard protocols are supported, including PWM, SBus, Fast SBus (200k), SRXL-2 (400k), and an inverted SBus (or rather an inverted-inverted SBus) to increase flexibility with F4 FCs.
Deja-Vu binding ensures that receivers already ‘known’ by a Ghost transmitter (through a previous bind operation) no longer require a button press to bind them. This also goes for new receivers, which will bind for the first time without the need for the button (all of this because we can’t stand tearing models open to find that buried bind button).
Features
- 2.4GHz ISM Band
- JR Compatible Transmitter with Diversity Transmission
- One Of The Smallest Receivers On the Market
- Chirp Spread Spectrum, with Adaptive FHSS
- Crazy Race Performance, 222.22Hz updates
- ~4ms End to End Latency, with OpenTx Integration
- More range than most pilots will ever need
Specifications
- Downlink RF Power: +13dBm
- Sensitivity: -117dBm in Long Range mode
- Serial Formats: SBus, SBus-Fast (200k) , SRXL-2 (400k), GHST, SBus Inverted
- Firmware: Over-the-air (OTA) upgradable
- Power Supply: 5V recommended, as low as 3.3V tolerated
- VTX Control: Tramp control from ‘T’ pin on Rx, regardless of the selected serial format
- Dimensions: 14.8mm x 11.5mm, 0.6g (w/o antenna)
- Rx Noise Floor Analysis: Auto on power-up, or on-demand from the Tx
For the latest firmware and or manuals please click here
