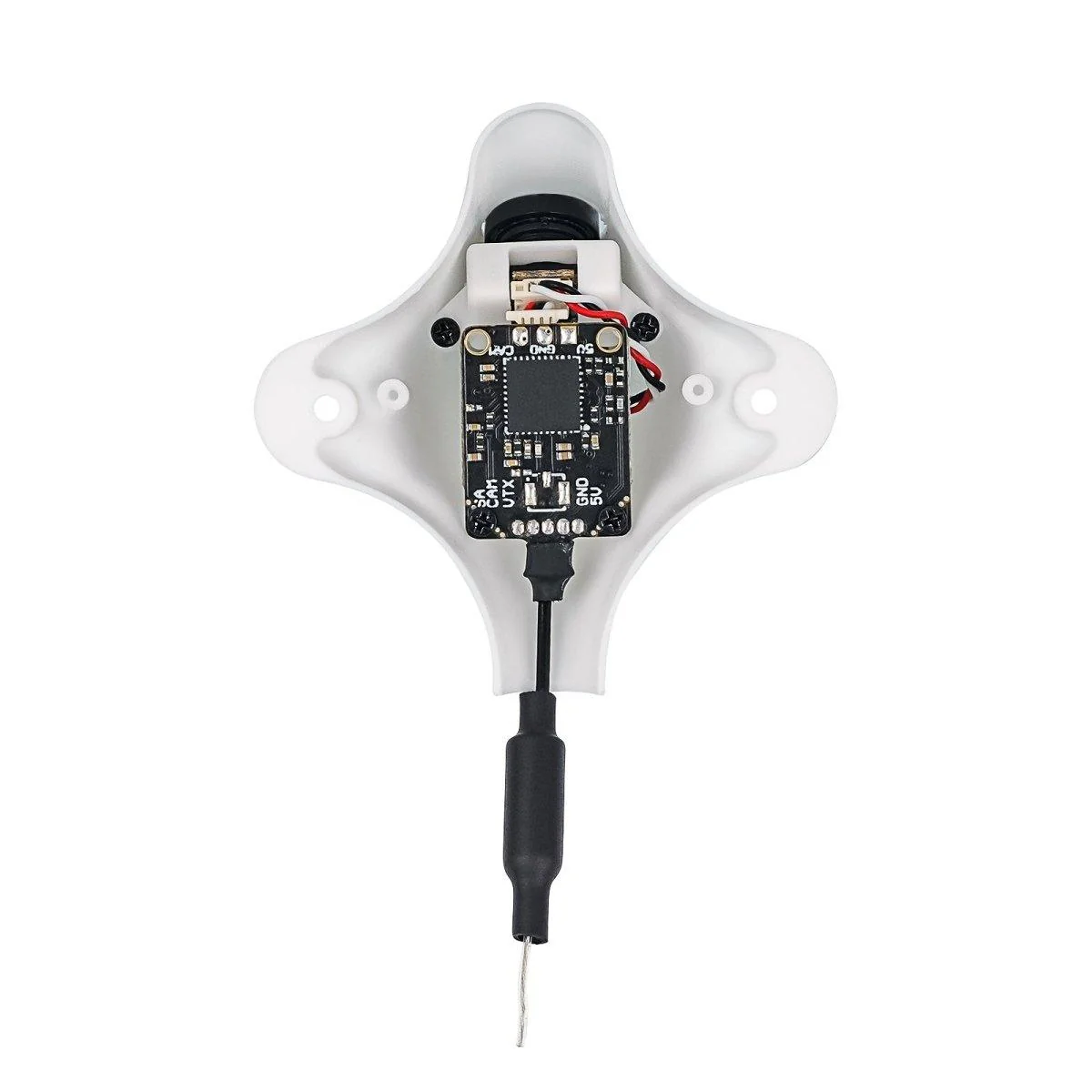

M01 AIO Camera 5.8G VTX V2.1 is upgraded into a pin-connected version, easy to connect with the camera.  With the ultra-lightweight 2.72g. It comes with a super Mini 5.8GHz FPV Transmitter, 1200TVL FPV Camera (C02), and RG178 Antenna features 6 bands and 37 channels on the 5.8GHz band with Raceband which is perfect for Pro Series and Brushed Whoop Drone.

Note: If you are looking for AIO VTX for the Pro2 Series whoop drone, Please click here to reach out.

Bullet Point

• Upgraded into pin-connected version, easy to assemble
• Lighter than Z02 AIO Camera VTX, perfect for Micro Drone
• Suitable for Pro Series and Brushed Whoop Drone
• 30° tilt Camera Mounting hardware is provided to suit your preference

Specification

• Item: M01 Camera AIO VTX V2.1
• Camera: C02 FPV Micro Camera
• TVL: 1200TVL
• FOV: H:120°/V:100°
• Video System: NTSC
• Horizontal Resolution: 640X480 1/4”
• Output power: 25mW
• Supply Voltage: 5V
• Size: 18*14*4.5mm(VTX)
• Weight: 2.72g
• Antenna: RG178 Antenna
• Frequency: 5.8GHz 6 bands 37 channels, with Raceband: 5362~5945MHz



Component Layout Diagram for M01 VTX V2.1

The following diagram describes the organization and wiring of the physical components on the M01 VTX V2.1 board.

How to Connect with FC

Here is the diagram about how to connect the VTX to  F4 AIO 1-2S FC.







Package

• 1 * BETAFPV M01 AIO FPV Camera VTX
• 1 * Micro Canopy 2022
• 4 * M1.4x4mm screws
• 1 * 1/4'' Camera Mounting hardware

Note: The canopy in the package is updated to the Micro Canopy 2022 version white color and a heatsink is added to the C02 camera.

_______________________________________________________________________________________

Check it here to know more about the V1.0version

• Component Layout Diagram for M01 VTX V1.0

The following diagram describes the organization and wiring of the physical components on the M01 VTX board.

• How to Connect with FC

M01 VTX comes with pluggable pins, which is convenient assembly with brushed FC like F4 1S Frsky brushed FC
