Packed with features, the H743 Mini from Matek is ready to go. Compatible with INAV, Betaflight, and ArduPilot.

Check out our 20x20 FCs as well as the entire Matek selection!

Specifications

• Input Voltage: 2-8S
• MCU: STM32H743VIT6, 480MHz
• IMU: ICM42688-P (SPI1) & ICM42605 (SPI4)
• Baro: Infineon DPS310 (I2C2)
• OSD: AT7456E (SPI2)
• Blackbox: MicroSD card socket (SDIO)
• UARTs: 5.5 (1,2,4,6,7, Rx8)
• PWM Outputs: 11
• I2C: 2 (I2C1/DA1 CL1 pads, no I2C2 breakout)
• CAN: Yes (C-H, C-L pads)
• BEC: 5V 1.5A cont. (Max.2A)
• BEC: 8V 1.5A cont. (Max.2A),   8V outputs stable when Vbat>=10V,  8V outputs 80% of Vbat when Vbat< 10V
• LDO 3.3V: 200mA
• VB2 pad supports Max. 69V (voltage divider 1K:20K)
• Static Power: 200mA@5V with Betaflight,  150mA@5V with ArduPilot
• ADC: 5 (VBAT, Current, RSSI, VB2, CU2)
• Dual Camera Inputs Switch: Yes
• 8V Power ON/OFF Switch: Yes
• Firmware: MATEKH743

• Mounting Pattern: 20x20 M3
• Dimensions: 36x28x6.5mm
• Weight: 7g

Includes

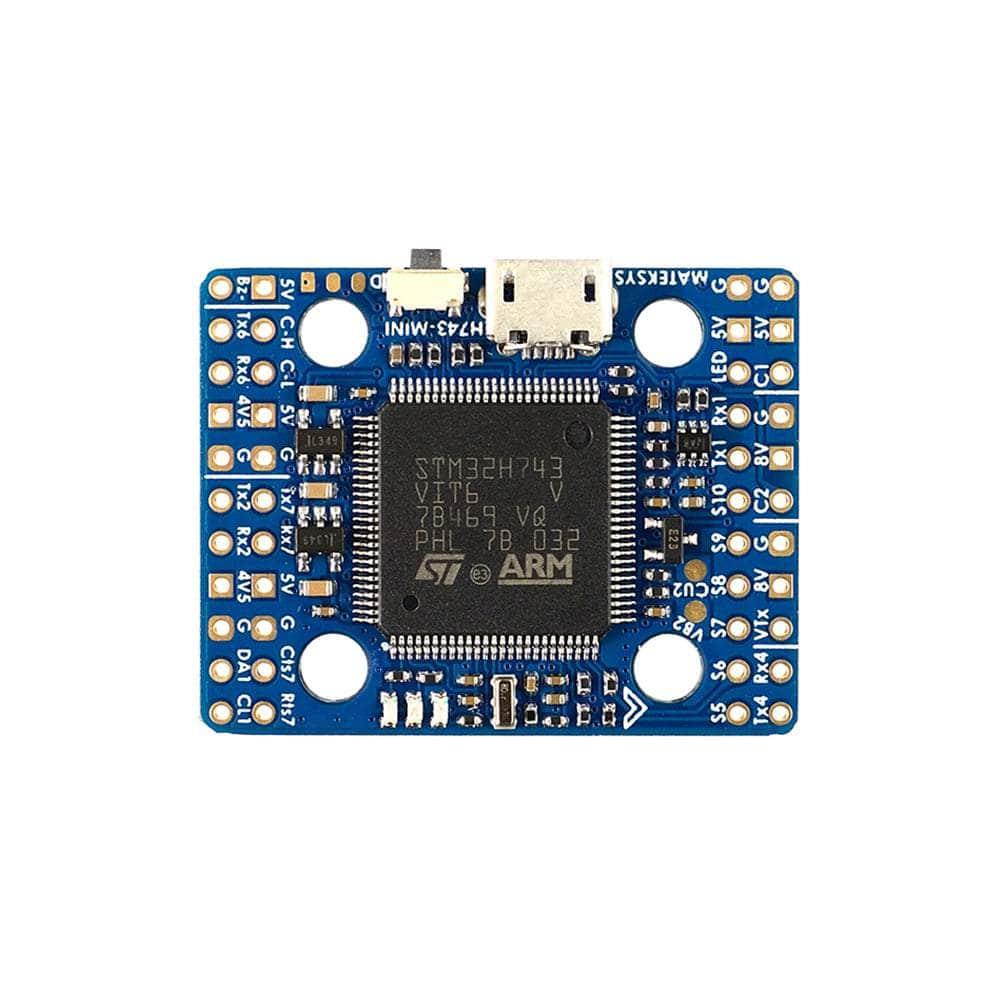

• 1x Matek H743 Mini V3 20x20 Flight Controller
• 6x Silicon grommets M4 to M3
• 6x Brass grommets M3 to M2
• 1x JST-SH1.0_8pin cable, 5cm
• 2x JST-SH1.0_8pin connectors

Wiring Diagram
