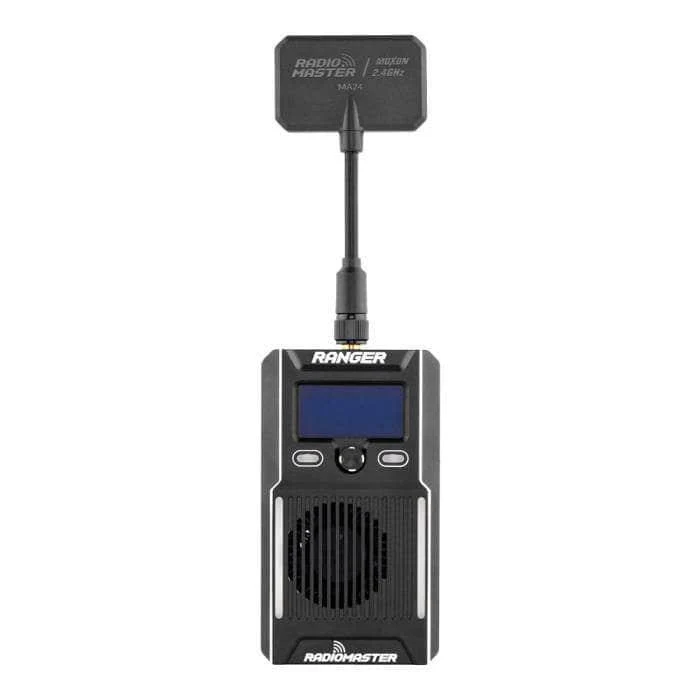

RadioMaster Ranger 2.4GHz ELRS Transmitter Module - Choose Version
The RadioMaster Ranger 2.4GHz ELRS Module features a rugged CNC case and two module bay adapters. Other features include an OLED display, built-in accelerometer, packet rates up to F-1000Hz, up to 1 Watt Power output, and a high-efficiency cooling system. The 5 Direction Nav key and customizable shortcut buttons make this module user-friendly and customizable.
The starter combo also includes additional RPI receivers and one RP2 Receiver.
Check out all our RC Transmitters and our entire RadioMaster selection!
Features
- 2 Customizable Shortcut Buttons
- High-Efficiency Cooling System
- ExpressLRS 2.4GHz Module
- Max F-1000Hz Packet Rate
- WiFi and Bluetooth Support
- Rugged CNC Housing
- RGB Lighting effects
- 5 Direction NAV Key
- 1W Power Output
- OLED Display
Specifications
- Dimension: 178x51x25mm, 138g(with Moxon antenna) / 95x51x25mm, 126g (without antenna)
- Maximum packet rate: 500Hz/F1000Hz
- Minimum receiver refresh rate: 25Hz
- Futaba CRSF socket cable: Included
- Frequency: ExpressLRS 2.4GHz
- Regulatory Domain: ISM2400
- Packet Rate: MAX F-1000Hz
- OLED screen: 64x128px
- Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket
- RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
- Weight: 138g (with Moxon antenna) / 135g (with T antenna)
- 3-Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)
- Power Output: 1WItem: Ranger 2.4GHz ELRS Module
- MCU: ESP32(main), ESP8285(aux, as esp backpack)
- Frequency Range: 2400 MHz to 2480 MHz
- XT30 Power supply voltage: DC 6V - 16V
- OLED screen: 64x128px
- Maximum packet rate: 500Hz/F1000Hz
- Minimum receiver refresh rate: 25Hz
- Futaba CRSF socket cable: Included
- Frequency: ExpressLRS 2.4GHz
- Regulatory Domain: ISM2400
- Packet Rate: MAX F-1000Hz
- OLED screen: 64x128px
- RF chip: SX1281IMLTRT
- Accelerometer: Built-In
- RGB: Built-in light strip
- Bluetooth support: Yes
- 3-Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)
- Wifi Support: Yes
- RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
- Weight: 138g (with Moxon antenna) / 135g (with T antenna)
- Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket
Includes Transmitter Only
- 1x Nano Standard 8pin Socket Module Bay Adapter
- 1x JR Standard 5pin Socket Module Bay Adapter
- 1x Radiomaster Ranger 2.4Ghz ELRS Module
- 1x 2.4GHz Moxon Antenna - RP-SMA
- 1x Hexagon Socket Screwdriver
- 1x 2.4GHz T Antenna - RP-SMA
- 1x Futaba CRSF socket cable
- 3x M2x5 Screws
Includes Starter Combo
- 1x Nano Standard 8pin Socket Module Bay Adapter
- 1x JR Standard 5pin Socket Module Bay Adapter
- 1x Radiomaster Ranger 2.4Ghz ELRS Module
- 1x 2.4GHz Moxon Antenna - RP-SMA
- 1x Hexagon Socket Screwdriver
- 1x 2.4GHz T Antenna - RP-SMA
- 2x Radiomaster RP1 Receiver
- 1x Radiomaster RP2 Receiver
- 1x Futaba CRSF socket cable
- 3x M2x5 Screws
