RCinPOWER GTS V3 1804 Light Motor w/ 1.5mm T-Mount Shaft - Choose KV / Color

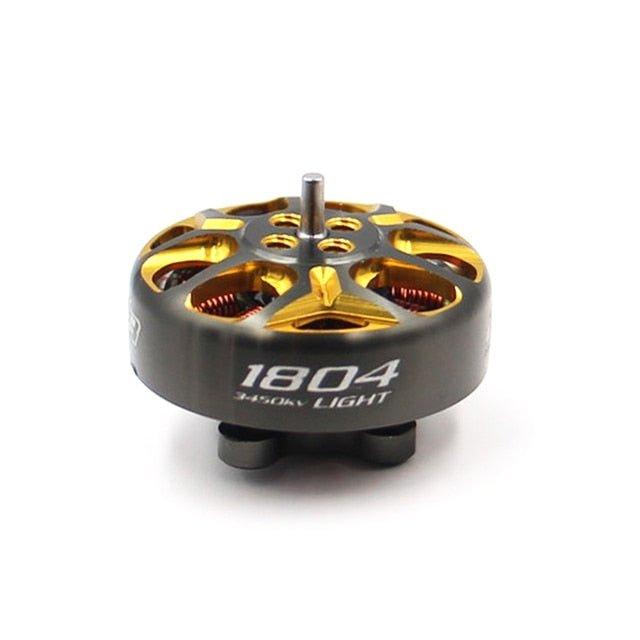

Product image 1
1 / 2

RCinPOWER GTS V3 1804 Light Motor w/ 1.5mm T-Mount Shaft - Choose KV / Color

Common on 3-inch Freestyle, Cinewhoop, and Duct Surveying Drones

SPECIFICATIONS

2450KV:
Configu-ration:12N14P
Stator diameter:18mm
Stator length:4mm
Shaft diameter:2mm(in),1.5mm(out)
Motor Dimension:φ22.74mm x 13.2mm
Weight:12g/pc(3cm wire)
Idle current (10) @10V(A):1
No. of cells (Lipo):4-6S
Max continuous power (W) 3s:432
Internal resistance:166mΩ
Max current(3s):18A
Max. effciency current:2-5A ＞84%

3450KV:
Configu-ration:12N14P
Stator diameter:18mm
Stator length:4mm
Shaft diameter:2mm(in),1.5mm(out)
Motor Dimension:φ22.74mm x 13.2mm
Weight:12g/pc(3cm wire)
Idle current (10) @10V(A):1
No. of cells (Lipo):3-4S
Max continuous power (W) 3s:385
Internal resistance:116mΩ
Max current(3s):24A
Max. effciency current:3-6A ＞84%


INCLUDES

  • 1 x RCINPower GTS V3 Brushless Motor 1804 (Choose KV / Color)

Common on 3-inch Freestyle, Cinewhoop, and Duct Surveying Drones

SPECIFICATIONS

2450KV:
Configu-ration:12N14P
Stator diameter:18mm
Stator length:4mm
Shaft diameter:2mm(in),1.5mm(out)
Motor Dimension:φ22.74mm x 13.2mm
Weight:12g/pc(3cm wire)
Idle current (10) @10V(A):1
No. of cells (Lipo):4-6S
Max continuous power (W) 3s:432
Internal resistance:166mΩ
Max current(3s):18A
Max. effciency current:2-5A ＞84%

3450KV:
Configu-ration:12N14P
Stator diameter:18mm
Stator length:4mm
Shaft diameter:2mm(in),1.5mm(out)
Motor Dimension:φ22.74mm x 13.2mm
Weight:12g/pc(3cm wire)
Idle current (10) @10V(A):1
No. of cells (Lipo):3-4S
Max continuous power (W) 3s:385
Internal resistance:116mΩ
Max current(3s):24A
Max. effciency current:3-6A ＞84%


INCLUDES

  • 1 x RCINPower GTS V3 Brushless Motor 1804 (Choose KV / Color)

Select KV
Select Color
From $129,341.10

Original: $431,136.99

-70%
RCinPOWER GTS V3 1804 Light Motor w/ 1.5mm T-Mount Shaft - Choose KV / Color—

$431,136.99

$129,341.10

Description

Common on 3-inch Freestyle, Cinewhoop, and Duct Surveying Drones

SPECIFICATIONS

2450KV:
Configu-ration:12N14P
Stator diameter:18mm
Stator length:4mm
Shaft diameter:2mm(in),1.5mm(out)
Motor Dimension:φ22.74mm x 13.2mm
Weight:12g/pc(3cm wire)
Idle current (10) @10V(A):1
No. of cells (Lipo):4-6S
Max continuous power (W) 3s:432
Internal resistance:166mΩ
Max current(3s):18A
Max. effciency current:2-5A ＞84%

3450KV:
Configu-ration:12N14P
Stator diameter:18mm
Stator length:4mm
Shaft diameter:2mm(in),1.5mm(out)
Motor Dimension:φ22.74mm x 13.2mm
Weight:12g/pc(3cm wire)
Idle current (10) @10V(A):1
No. of cells (Lipo):3-4S
Max continuous power (W) 3s:385
Internal resistance:116mΩ
Max current(3s):24A
Max. effciency current:3-6A ＞84%


INCLUDES

  • 1 x RCINPower GTS V3 Brushless Motor 1804 (Choose KV / Color)
