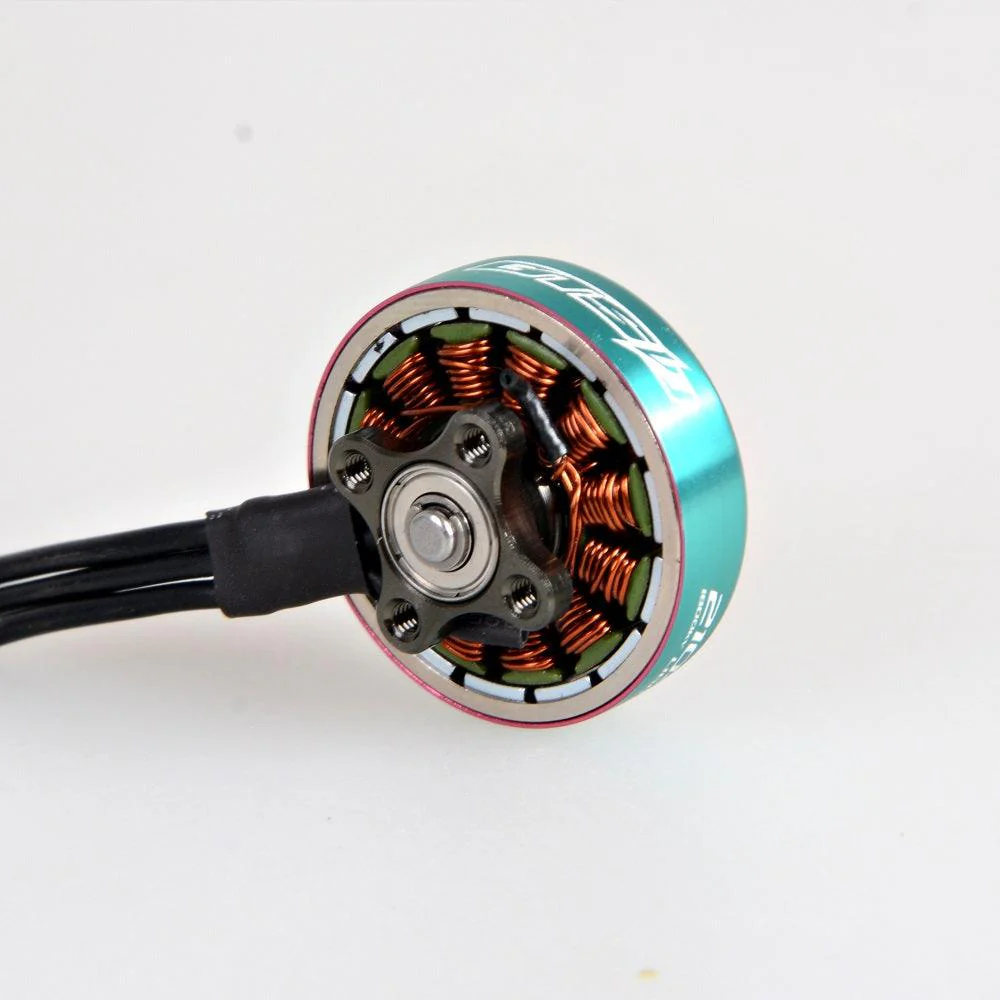

RCinPOWER GTS V3 2104 Light Motor w/ 1.5mm T-Mount Shaft - Choose KV / Color

Product image 1
1 / 6
+1

RCinPOWER GTS V3 2104 Light Motor w/ 1.5mm T-Mount Shaft - Choose KV / Color

SPECIFICATIONS

  • Configuration: 12N14P
  • Stator Diameter: 21mm
  • Stator Length: 4mm
  • Shaft Diameter: 3mm (Inner) / 1.5mm (Outer)
  • Motor Dimension: φ25.35mm x 13.8mm
  • Weight: 15.9g (3cm wire)

1800KV:

  • Idle Current @10V: 0.5A
  • No. of Cells (Lipo): 4~6S
  • Max Continuous Power (3S): 530W
  • Internal Resistance: 210mΩ
  • Max Current (3S): 22.1A
  • Max. Efficiency Current: (0.6-2A) > 86%

3000KV:

  • Idle Current @10V: 0.9A
  • No. of Cells (Lipo): 3~4S
  • Max Continuous Power (3S): 580W
  • Internal Resistance: 110mΩ
  • Max Current (3S): 36.2A
  • Max. Efficiency Current: (2-5A) > 85%

INCLUDES

  • 1 x RCinPOWER GTS V3 2104 Brushless Motor (Choose KV / Color)

SPECIFICATIONS

  • Configuration: 12N14P
  • Stator Diameter: 21mm
  • Stator Length: 4mm
  • Shaft Diameter: 3mm (Inner) / 1.5mm (Outer)
  • Motor Dimension: φ25.35mm x 13.8mm
  • Weight: 15.9g (3cm wire)

1800KV:

  • Idle Current @10V: 0.5A
  • No. of Cells (Lipo): 4~6S
  • Max Continuous Power (3S): 530W
  • Internal Resistance: 210mΩ
  • Max Current (3S): 22.1A
  • Max. Efficiency Current: (0.6-2A) > 86%

3000KV:

  • Idle Current @10V: 0.9A
  • No. of Cells (Lipo): 3~4S
  • Max Continuous Power (3S): 580W
  • Internal Resistance: 110mΩ
  • Max Current (3S): 36.2A
  • Max. Efficiency Current: (2-5A) > 85%

INCLUDES

  • 1 x RCinPOWER GTS V3 2104 Brushless Motor (Choose KV / Color)
Select KV
Select Color
From $3,472.20

Original: $11,574.00

-70%
RCinPOWER GTS V3 2104 Light Motor w/ 1.5mm T-Mount Shaft - Choose KV / Color—

$11,574.00

$3,472.20

Description

SPECIFICATIONS

  • Configuration: 12N14P
  • Stator Diameter: 21mm
  • Stator Length: 4mm
  • Shaft Diameter: 3mm (Inner) / 1.5mm (Outer)
  • Motor Dimension: φ25.35mm x 13.8mm
  • Weight: 15.9g (3cm wire)

1800KV:

  • Idle Current @10V: 0.5A
  • No. of Cells (Lipo): 4~6S
  • Max Continuous Power (3S): 530W
  • Internal Resistance: 210mΩ
  • Max Current (3S): 22.1A
  • Max. Efficiency Current: (0.6-2A) > 86%

3000KV:

  • Idle Current @10V: 0.9A
  • No. of Cells (Lipo): 3~4S
  • Max Continuous Power (3S): 580W
  • Internal Resistance: 110mΩ
  • Max Current (3S): 36.2A
  • Max. Efficiency Current: (2-5A) > 85%

INCLUDES

  • 1 x RCinPOWER GTS V3 2104 Brushless Motor (Choose KV / Color)
