SPECIFICATIONS

1980KV:

• Configuration: 12N14P
• Stator diameter: 21mm
• Stator length: 7.5mm
• Shaft diameter: 4mm (Hollow)
• Motor dimension: φ26.29*30.85mm
• Weight: 29g/pc (3cm wire)
• Idle current (10) @10V(A): 0.85
• No. of cells (LiPo): 5~6S
• Max continuous power (W) 5S: 934
• Internal resistance: 55mΩ
• Max current (5S): 38.9A
• Max efficiency current: 4 - 8A >86%

2080KV:

• Configuration: 12N14P
• Stator diameter: 21mm
• Stator length: 7.5mm
• Shaft diameter: 4mm (Hollow)
• Motor dimension: φ26.29*30.85mm
• Weight: 29g/pc (3cm wire)
• Idle current (10) @10V(A): 0.9
• No. of cells (LiPo): 5~6S
• Max continuous power (W) 5S: 1042
• Internal resistance: 53mΩ
• Max current (5S): 43.4A
• Max efficiency current: 5 - 9A >86%

2480KV:

• Configuration: 12N14P
• Stator diameter: 21mm
• Stator length: 7.5mm
• Shaft diameter: 4mm (Hollow)
• Motor dimension: φ26.29*30.85mm
• Weight: 29g/pc (3cm wire)
• Idle current (10) @10V(A): 0.9
• No. of cells (LiPo): 4~5S
• Max continuous power (W) 5S: 975
• Internal resistance: 48mΩ
• Max current (5S): 46.4A
• Max efficiency current: 6 - 10A >86%

INCLUDES

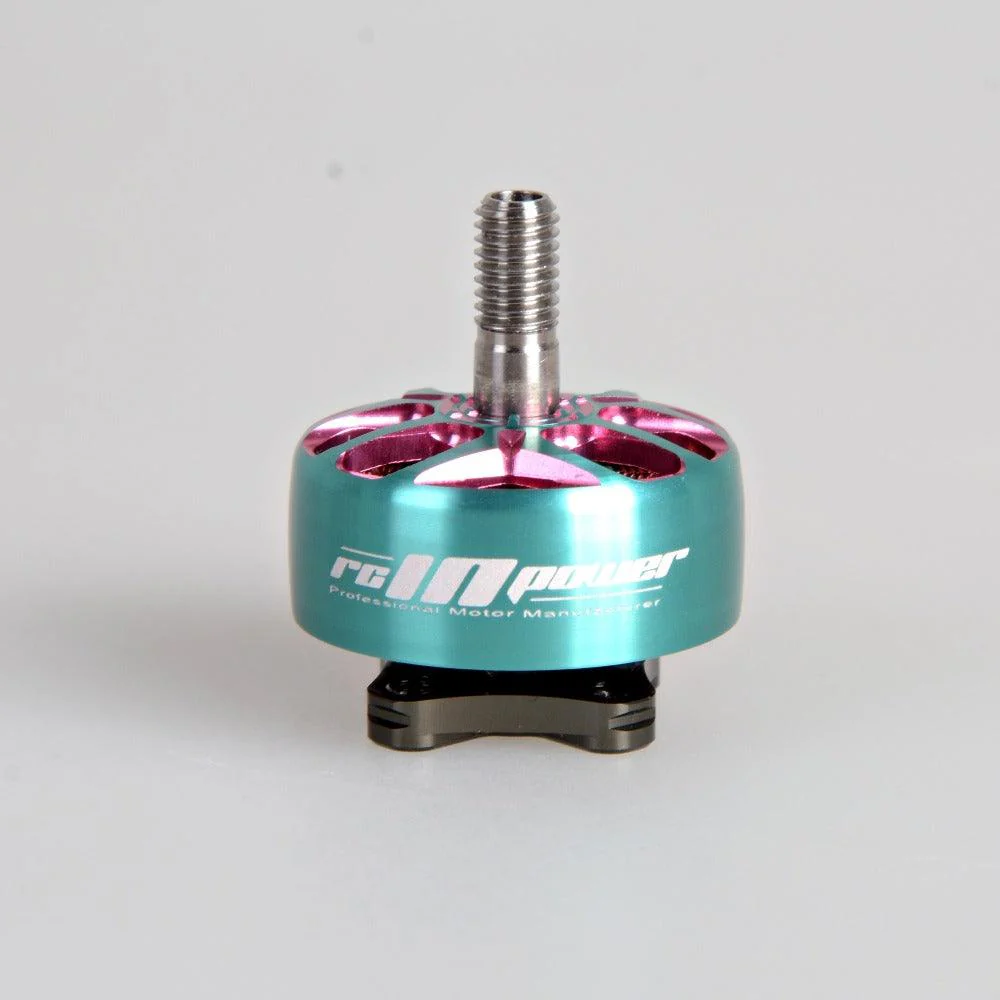

• RCINPower GTS V3 2107 Plus 1980KV Teal Blue * Pink Brushless Motor x 1
