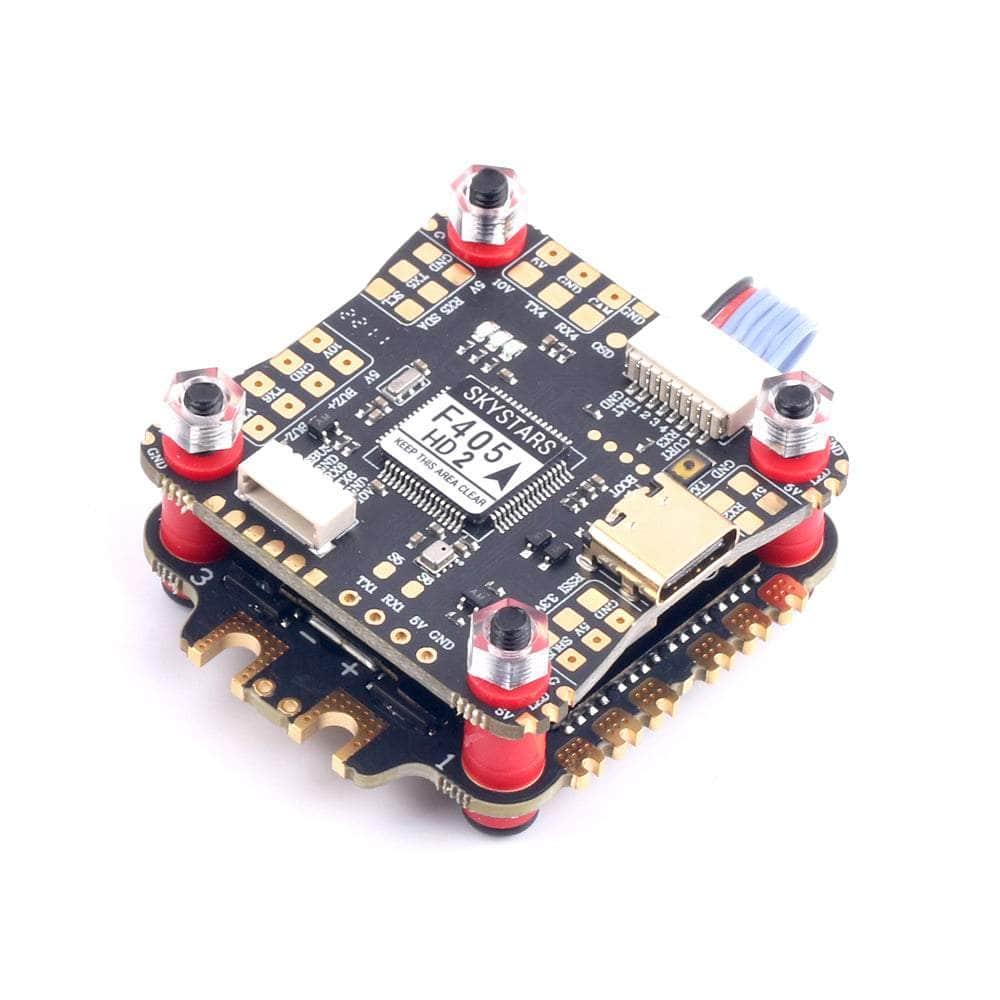

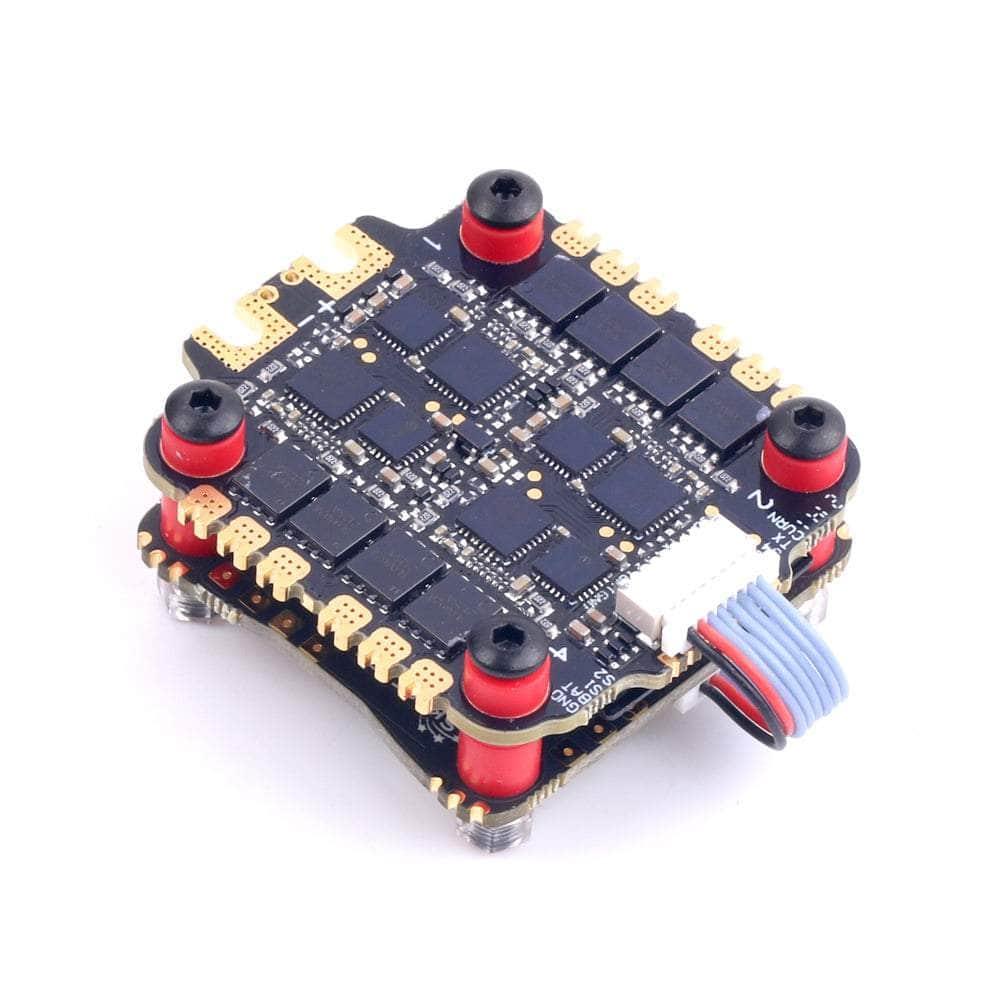

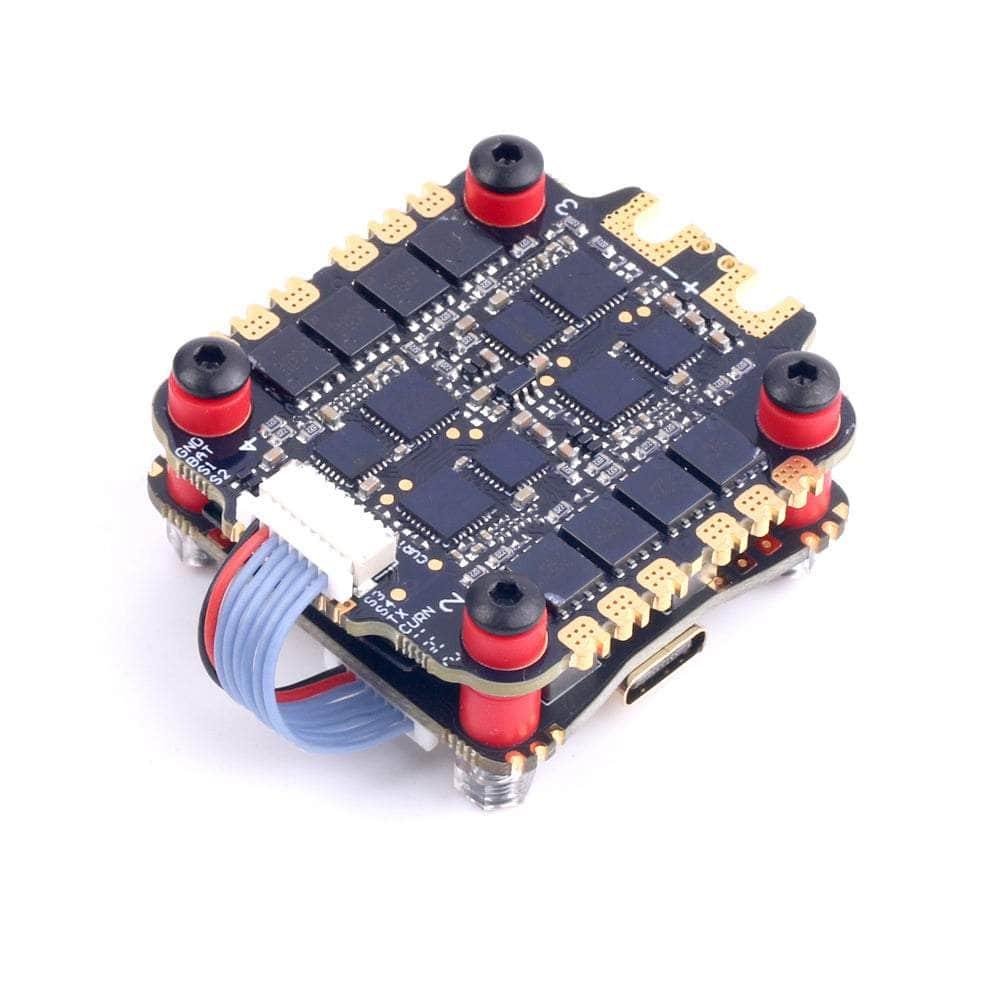

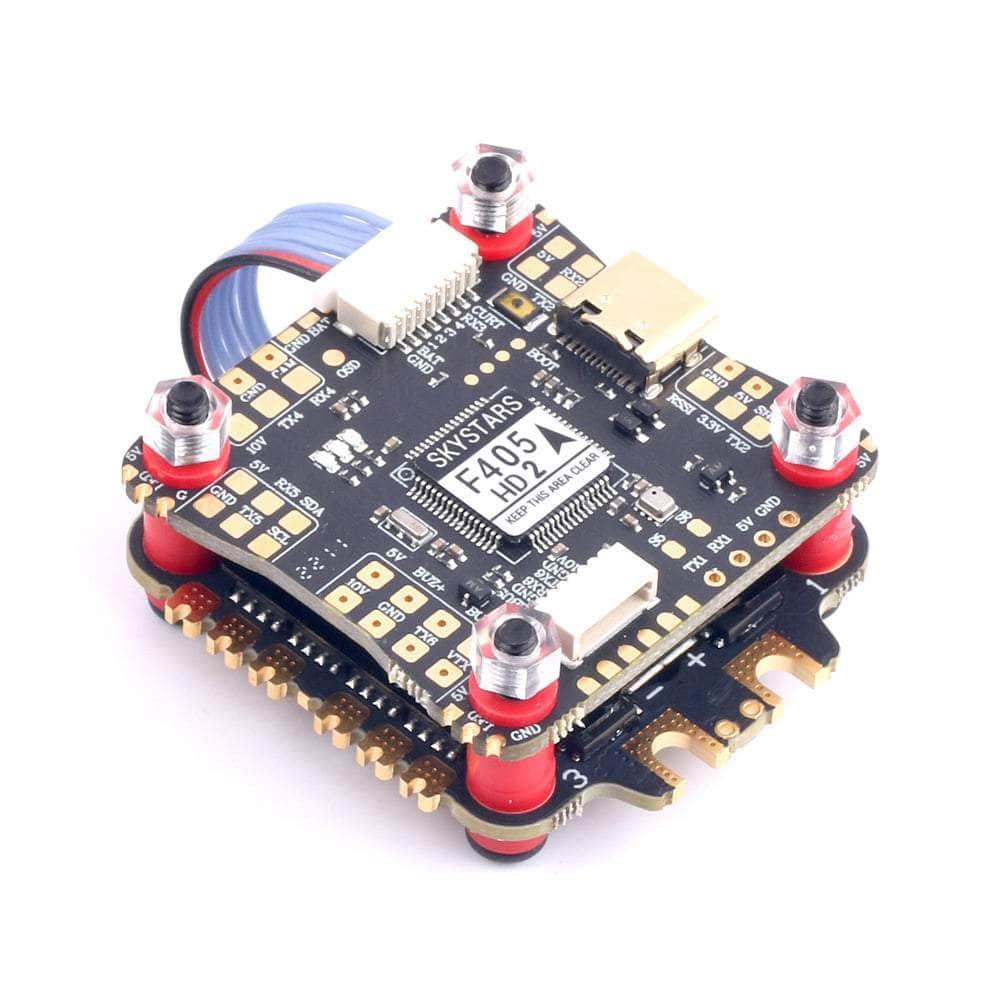

SkyStarsRC Fly Stack F405 HD2 3-6S 30x30 Stack/Combo (F405 FC / KO50A 8Bit 50A 4in1 ESC)
The SkyStarsRC Fly Stack F405 HD2 stack is an excellent choice for power-hungry pilots. Its F405 flight controller and KO50 8-bit 50A 4-in-1 ESC provide reliable, consistent performance, while its 3- to 6-cell battery supports power delivery up to 50 amps. Its 30x30 stack is perfect for professional-level pilots who need reliable, efficient power.
Check out our other 30x30 Stacks, and our SkyStarsRC collection!
Specifications
SkyStarsRC F4 Flight Controller
- MCU: STM32F405
- IMU: BMI270
- OSD: AT7456E
- Blackbox: 16MB
- 6X Uarts(1 2 3 4 5 6)
- WS2812 led Strip: YES
- Baro: YES
- Beeper: YES
- BEC: 5V/2A,3A Peak
- Betaflight FC Target: SKYSTARSF405
- INAV FC Target:SKYSTARSF405HD
- Mounting: 30.5x30.5mm, 4mm with Grommets 3mm
- Dimensions: 36x36mm
- Weight: 6g
K050 50A 4in1 ESC
- Dimension: 41x46mm
- Mounting Holes: 30.5x30.5mm/¦µ3mm
- Weight:13.3g
- Supports 3-6S Lipo input
- BB21 MCU, 48Mhz Runs BLHELI 16.X Firmware, Support Bulejay.
- Current sensor: YES
- BEC: NO
- Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
- Target: Q-H-50 BLS 16.7
Includes
- 1x SkyStarsRC Fly Stack F405 HD2 3-6S 30x30 Stack/Combo (F405 FC / KO50A 8Bit 50A 4in1 ESC)
- 4x Damping Rubbers (M3x3.5mm)
- 1x XT60 connector and wires
- 2x 8pin wiring harness (1x 70mm,1x 50mm)
- 1x 35v 560uf Capacitor
Wiring Diagram
