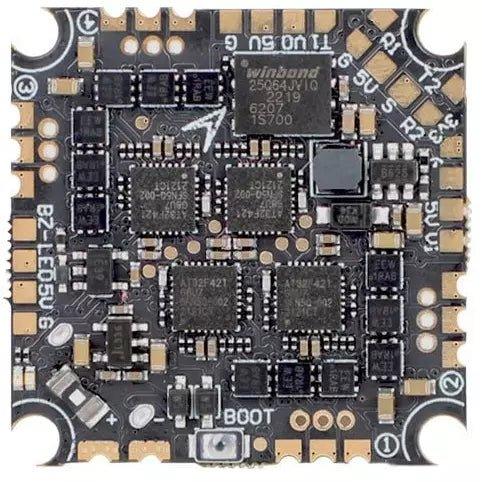

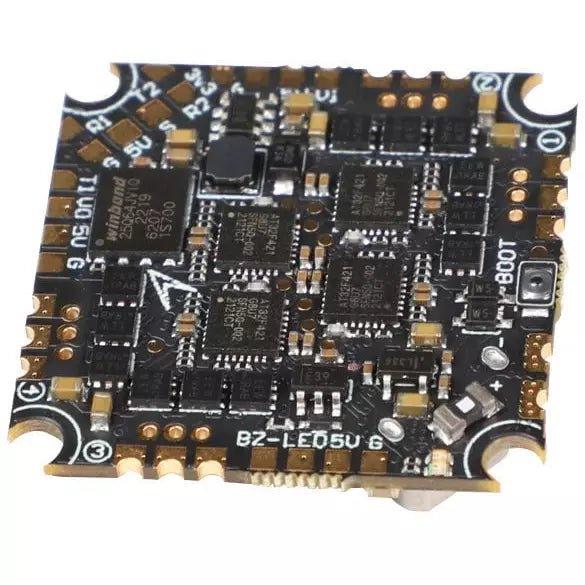

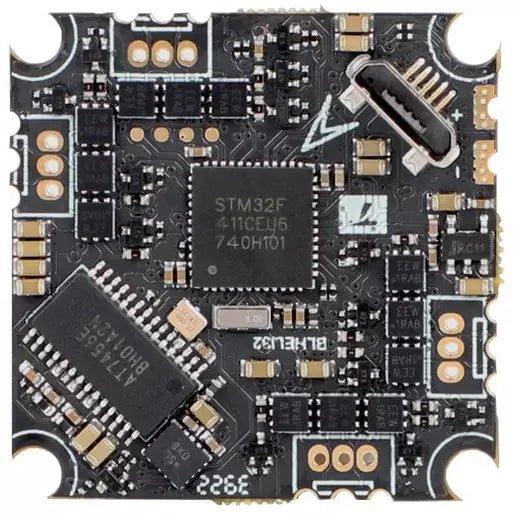

Introducing a new 1S AIO from T-Motor which is perfect for small whoops and toothpick quads! Featuring full BLHeli_32 ESC Firmware which gives you access to features like bidirectional DShot for RPM filtering and up to 96KHz PWM frequency for increased flight time and motor smoothness. The AIO also is equipped with 16MB of blackbox memory and the latest BMI270 gyro so you can tune your quad to perfection. Pick up yours today!

Browse our whoop flight controllers, and all our T-Motor products!

Features

• Support 1S battery
• F411 chip is used with high-performance computing speed, making it smoother during flight.

Specifications

Whoop AIO F4 V1.1 AIO

• MCU: STM32F411

• IMU: BMI270
• Firmware target: STM32F411
• OSD: Betaflight OSD w/ AT7456Ev
• UART Ports:  R1 T1,R2 T2
• USB: Micro USB

• BEC output: 5V@1A
• Continuous current: 6A

• Input: 1S
• Blackbox: 16Mb
• Supports: Dshot300, Dshot600
• ESC Firmware: BLHeli_32
• PWM Frequency: 24-96KHz
• Size: 29.5x29.5mm Board
• Installing Hole: 25.5x25.5mm, M2
• Weight: 5.7g

Includes

• T-Motor F411 1S Toothpick/Whoop AIO w/ 13A ESC
