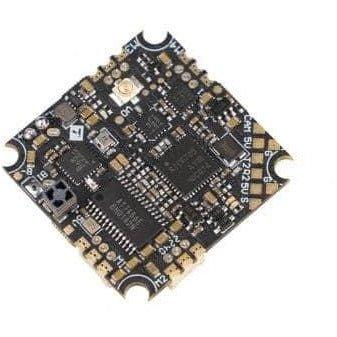

An awesome little AIO from T-Motor, Coming with 6A ESCs, ELRS 2.4G onboard reciever, and a 50mw VTX with OSD! This whoop AIO board truly does it all!

Browse our whoop flight controllers,  and all our T-Motor products!

Features

• Support 1S battery
• F411 chip is used with high-performance computing speed, making it smoother during flight.
• ELRS on board
• 50Mw VTX Smart Audio 1.0

Specifications

Whoop AIO F4 V1.1 AIO

• MCU: STM32F411

• IMU: BMI270
• Firmware target: STM32F411
• OSD: Betaflight OSD w/ AT7456Ev
• UART Ports:  R2 T2
• USB: Micro USB

• BEC output: 5V@1A
• Continuous current: 6A

• Input: 1S
• Supports: Blue Jay
• Size: 29.5x29.5mm Board

• Installing Hole: 25.5x25.5mm, M2
• Weight: 6.7g

Includes

• T-Motor F411 1S Toothpick/Whoop AIO w/ BlueJay 6A ESC & ELRS RX
