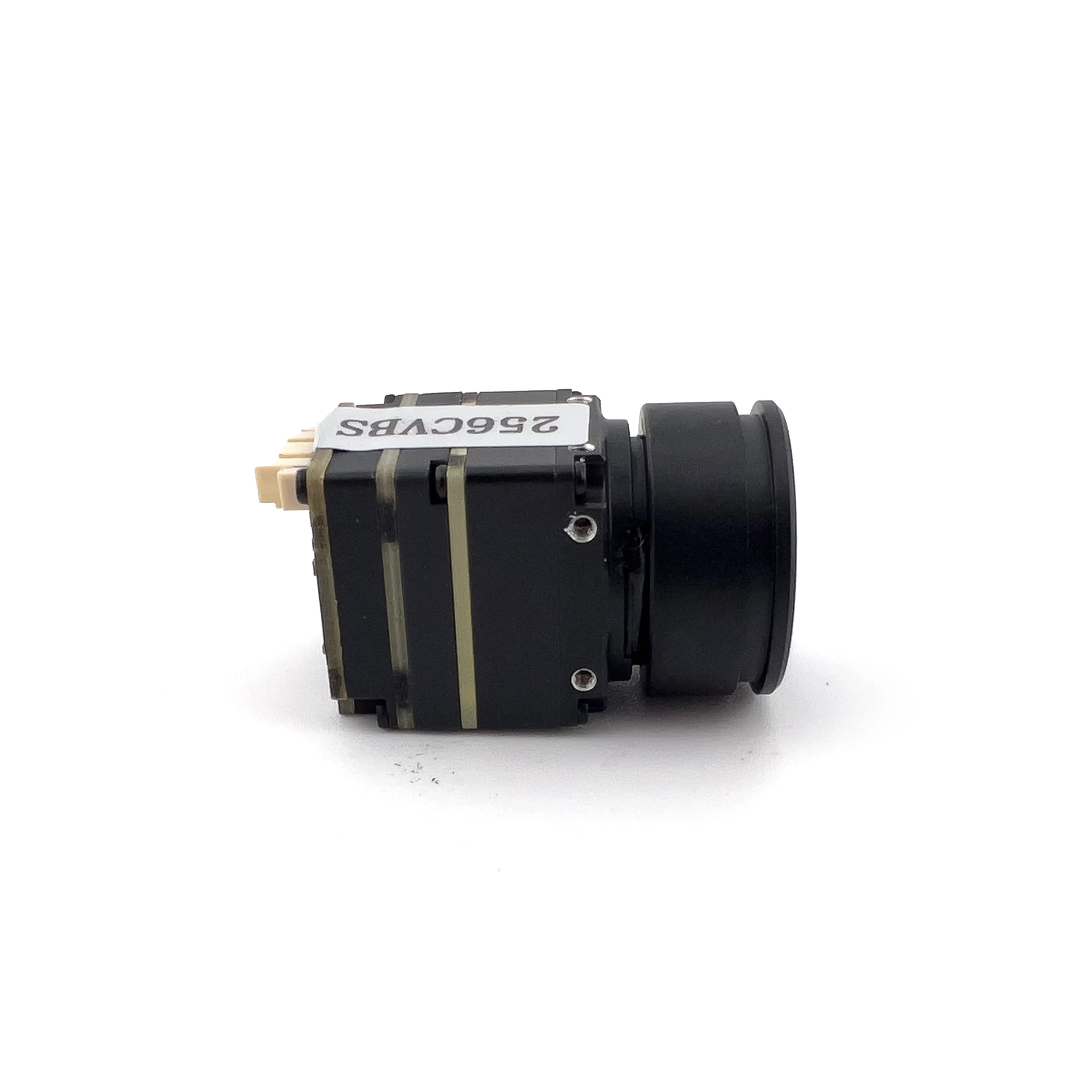

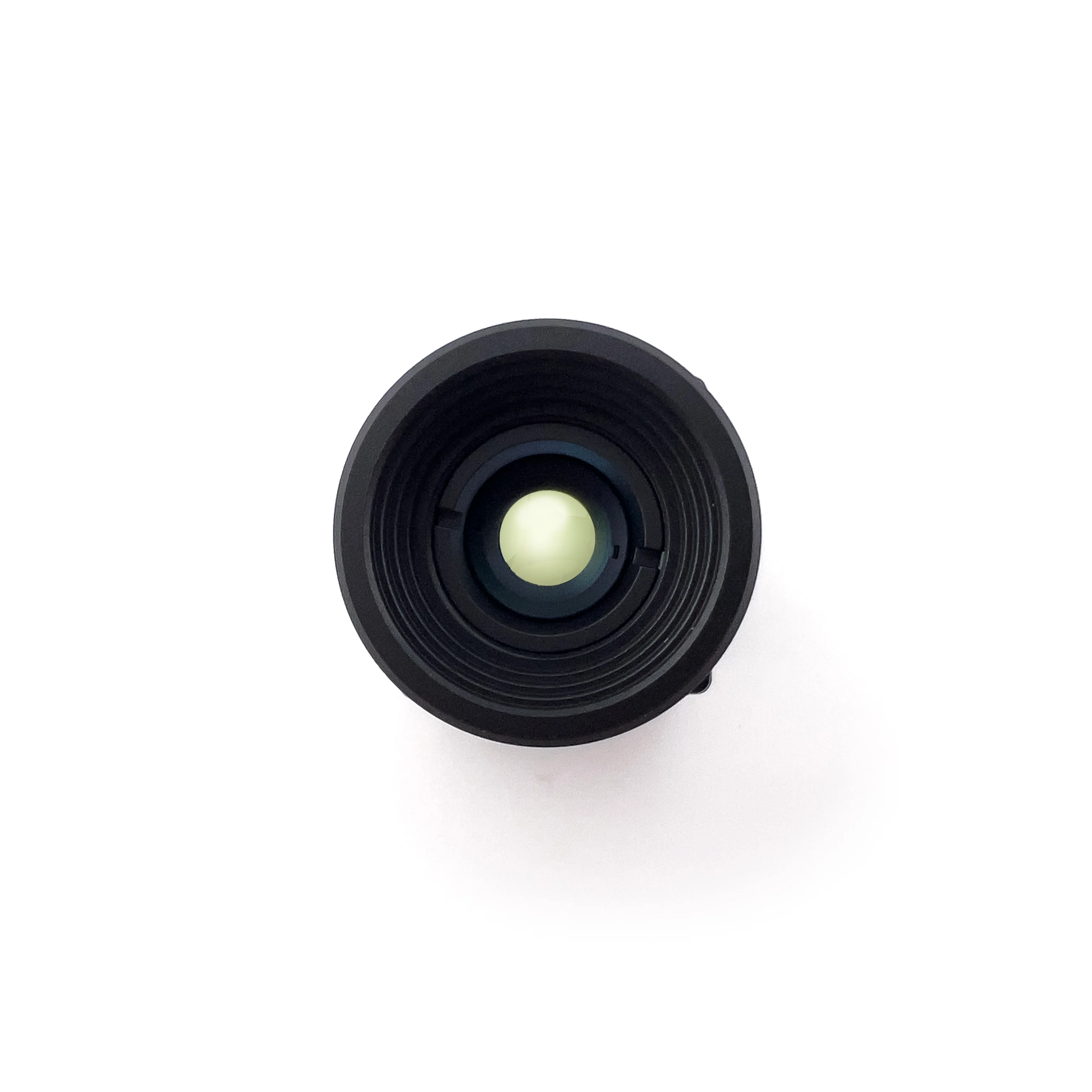

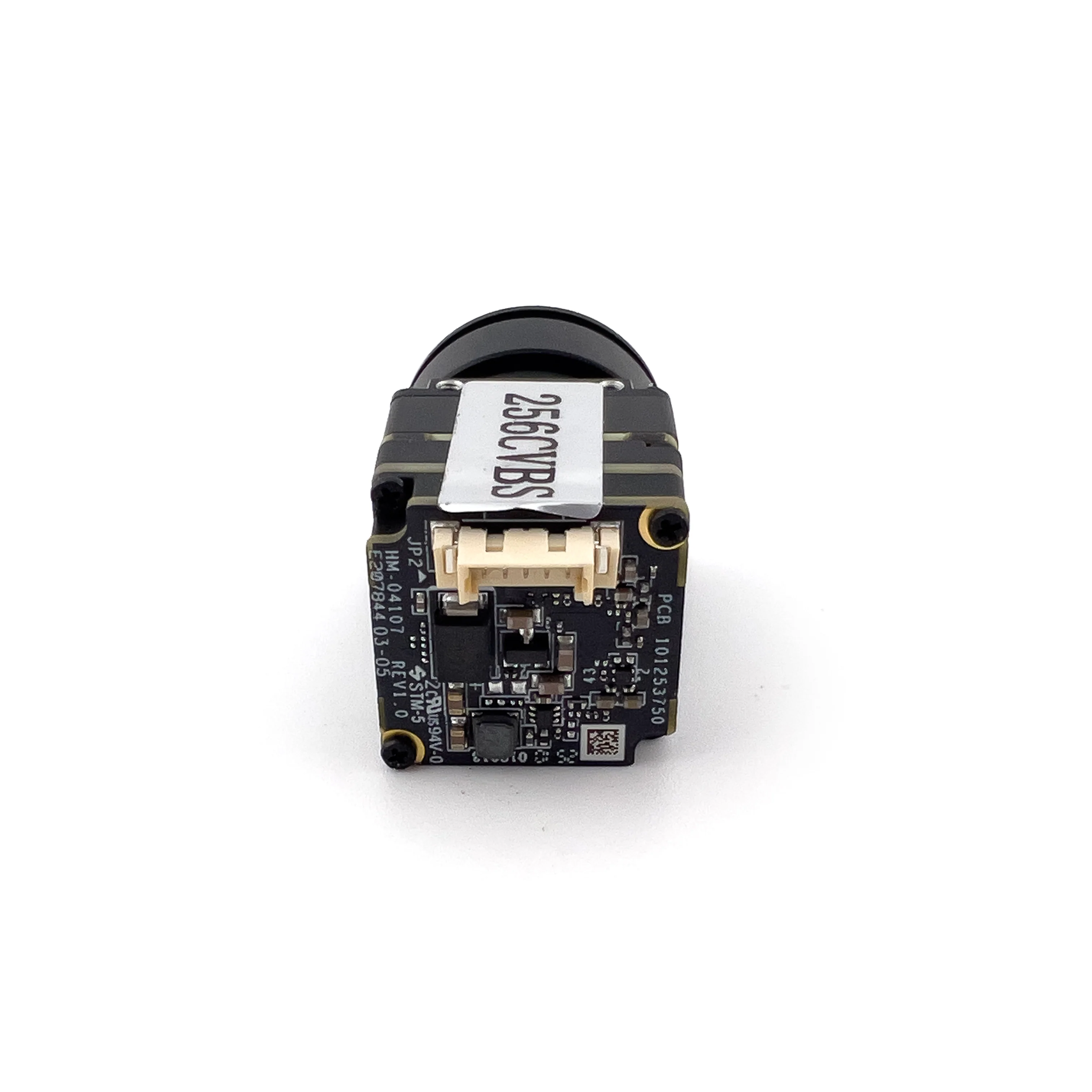

Thermal Analog FPV Camera 256x192 w/ 9.7mm Lens with CVBS Longwave IR 12um (Camera Only)

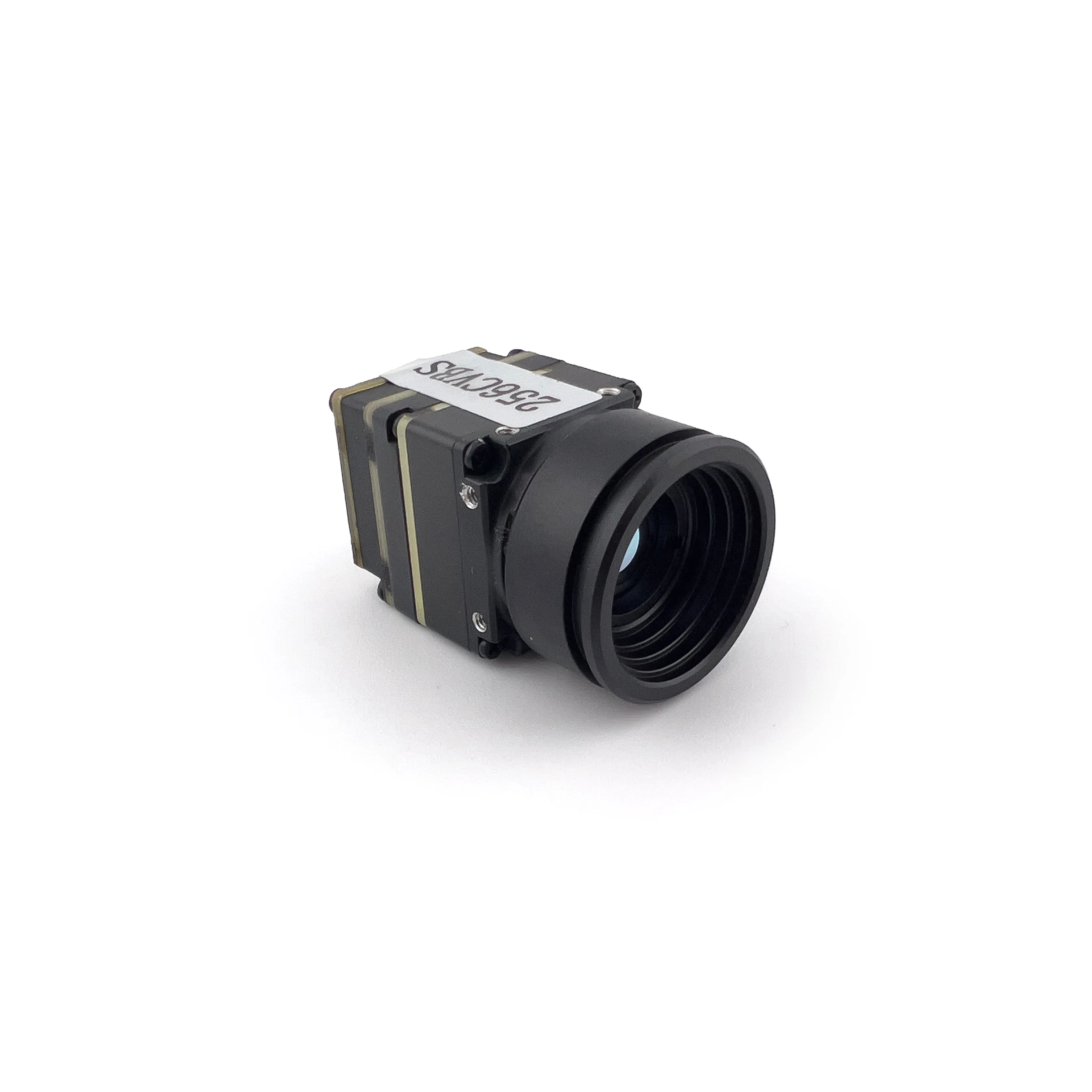

Product image 1
1 / 5

Thermal Analog FPV Camera 256x192 w/ 9.7mm Lens with CVBS Longwave IR 12um (Camera Only)

NOTE: Package includes camera only. Wiring/accessories may not be included.

The Thermal Analog FPV Camera 256×192 delivers reliable longwave infrared imaging for night flight and thermal detection. Featuring a 9.7mm F/1.0 lens and 12 µm pixel pitch, this compact module provides a crisp thermal view through standard analog FPV systems using a CVBS interface.

Specifications

  • Resolution: 256 × 192
  • Frame Rate: 25 fps
  • Detector Type: Vanadium oxide uncooled infrared focal plane array
  • Pixel Pitch: 12 µm
  • NETD: ≤ 40 mK (high sensitivity)
  • Spectral Band: 8 – 14 µm (longwave IR)
  • Lens: 9.7 mm F/1.0
  • Field of View (FOV): 19° (H) × 14° (V)
  • Polarity/Palette: White Hot, Black Hot, Fusion, Iron Red
  • Video Output: CVBS (PAL format)
  • Power Input: 5 – 16 V
  • Power Consumption: ≤ 0.8 W
  • Operating Temperature: –40 °C to +80 °C
  • Storage Temperature: –45 °C to +85 °C
  • Module Size: 20 mm × 20 mm (without lens)
  • Weight: ≤ 23 g (without lens)

Includes

  • 1 × Thermal Analog FPV Camera Module (9.7 mm Lens)
    (Camera Only)

NOTE: Package includes camera only. Wiring/accessories may not be included.

The Thermal Analog FPV Camera 256×192 delivers reliable longwave infrared imaging for night flight and thermal detection. Featuring a 9.7mm F/1.0 lens and 12 µm pixel pitch, this compact module provides a crisp thermal view through standard analog FPV systems using a CVBS interface.

Specifications

  • Resolution: 256 × 192
  • Frame Rate: 25 fps
  • Detector Type: Vanadium oxide uncooled infrared focal plane array
  • Pixel Pitch: 12 µm
  • NETD: ≤ 40 mK (high sensitivity)
  • Spectral Band: 8 – 14 µm (longwave IR)
  • Lens: 9.7 mm F/1.0
  • Field of View (FOV): 19° (H) × 14° (V)
  • Polarity/Palette: White Hot, Black Hot, Fusion, Iron Red
  • Video Output: CVBS (PAL format)
  • Power Input: 5 – 16 V
  • Power Consumption: ≤ 0.8 W
  • Operating Temperature: –40 °C to +80 °C
  • Storage Temperature: –45 °C to +85 °C
  • Module Size: 20 mm × 20 mm (without lens)
  • Weight: ≤ 23 g (without lens)

Includes

  • 1 × Thermal Analog FPV Camera Module (9.7 mm Lens)
    (Camera Only)

$244,175.47

Original: $813,918.25

-70%
Thermal Analog FPV Camera 256x192 w/ 9.7mm Lens with CVBS Longwave IR 12um (Camera Only)—

$813,918.25

$244,175.47
