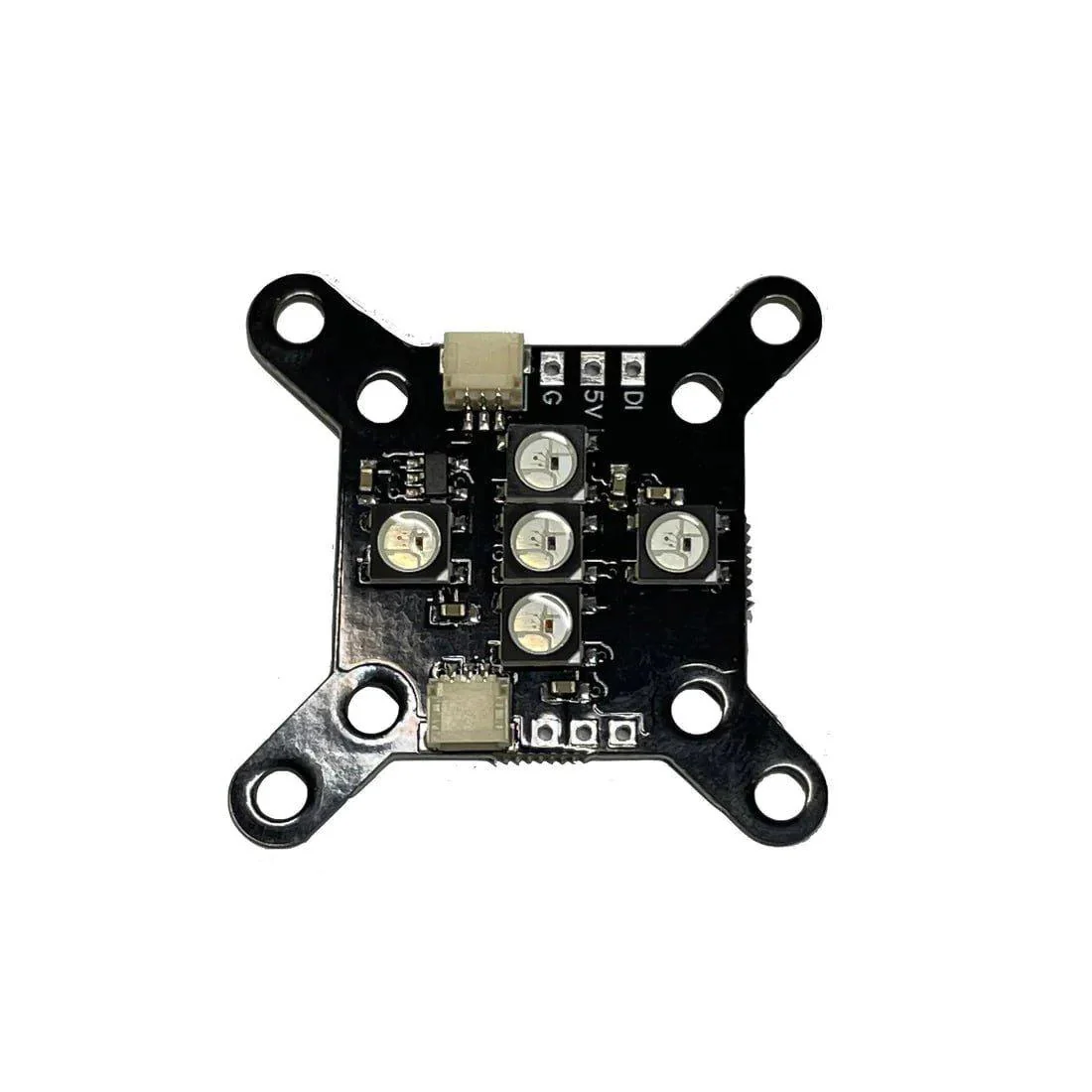

The PodliteV2 now comes with connectors to make wiring easier. Compatible with any tiny rainbow cable kits and LEDs.

Adding addressable lighting to your Quad Pods is easier now with the PodLite! it has 30x30mm  and 20x20mm Mounting.  Flat Bottom for mounting other items.

For 20x20 mounting, clip the tabs and mount.

Check out all our LEDs, and all our TinysLEDs products!

Features

• 5x WS2812B Addressable LEDs
• M3 Sized holes for both 30 and 20mm mount spacing.
• 5 Volts, 300ma MAX Draw
• 2x LED Connector
• Flight controller addressable
• Weight: 2.1 Grams

Includes

• 1x TinysLEDs PodLite V2 20x20 & 30x30 RGB LED Board w/ Connectors

Instructions

Layout for PodLite in BetaFlight:

The top is where the 4 pads are on the board.
