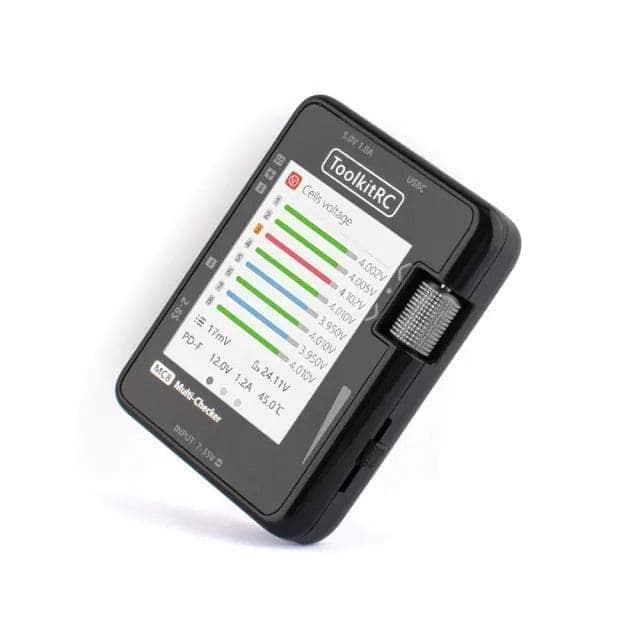

Product image 1
1 / 4

ToolkitRC MC8 Multi-Functional 2-8S Battery Checker

The latest from Toolkit is a feature packed multi purpose cell checker with a big, bright, easy to read display. Not only can you check cell voltages and balance your packs, you can also monitor the PWM/PPM/SBUS output of receivers, generate PWM output to test servos and ESCS, and use your LiPos for device charging (up to 20W PD)!  Check the video below to see what it can do!

Check out all our Battery Chargers and Accessories and our ToolkitRC selection!





    Specifications

    • LCD:  2" IPS 320x240
    • Dimensions: 68x50x15mm
    • Weight: 50g
    Checker
    • Main Input port: XT60 7.0-35.0V
    • Balance input: 0.5V-5.0V Lixx 2-8S
    • Signal port input: <6.0V
    • Balance current: MAX 60mA @2-8S
    • Balance accuracy: <0.005V @ 4.2V
    • USB-A output: [email protected] firmware upgrade
    • USB-C output: 5.0V-12.0V @MAX 20W
    • USB-C protocol: PD3.0 QC3.0 AFC SCP FCP
    Measurer
    • PWM: 500-2500us @20-400Hz
    • PPM: 880-2200us*8CH @20-50Hz
    • SBUS: 880-2200us*16CH @20-100Hz
     Output
    • PWM: 1000-2000us @20-1000Hz
    • PPM: 880-2200us*8CH @50Hz
    • SBUS: 880-2200us*16CH @74Hz

    Includes

    • 1x Toolkit RC MC 8 Multi-Functional 2-8S Battery Checker

    The latest from Toolkit is a feature packed multi purpose cell checker with a big, bright, easy to read display. Not only can you check cell voltages and balance your packs, you can also monitor the PWM/PPM/SBUS output of receivers, generate PWM output to test servos and ESCS, and use your LiPos for device charging (up to 20W PD)!  Check the video below to see what it can do!

    Check out all our Battery Chargers and Accessories and our ToolkitRC selection!





      Specifications

      • LCD:  2" IPS 320x240
      • Dimensions: 68x50x15mm
      • Weight: 50g
      Checker
      • Main Input port: XT60 7.0-35.0V
      • Balance input: 0.5V-5.0V Lixx 2-8S
      • Signal port input: <6.0V
      • Balance current: MAX 60mA @2-8S
      • Balance accuracy: <0.005V @ 4.2V
      • USB-A output: [email protected] firmware upgrade
      • USB-C output: 5.0V-12.0V @MAX 20W
      • USB-C protocol: PD3.0 QC3.0 AFC SCP FCP
      Measurer
      • PWM: 500-2500us @20-400Hz
      • PPM: 880-2200us*8CH @20-50Hz
      • SBUS: 880-2200us*16CH @20-100Hz
       Output
      • PWM: 1000-2000us @20-1000Hz
      • PPM: 880-2200us*8CH @50Hz
      • SBUS: 880-2200us*16CH @74Hz

      Includes

      • 1x Toolkit RC MC 8 Multi-Functional 2-8S Battery Checker
