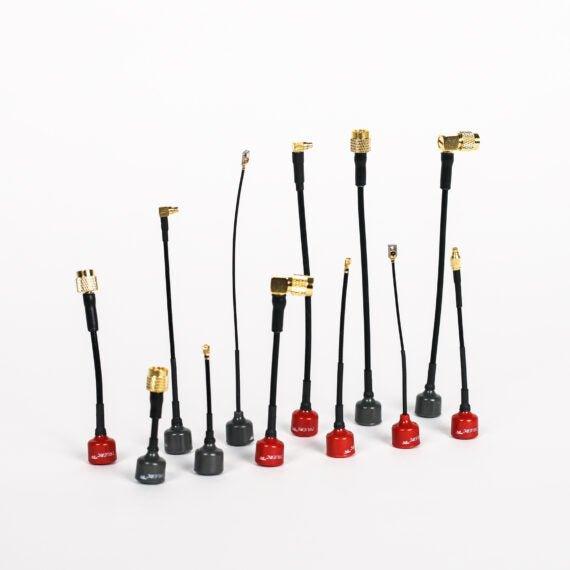

TrueRC Singularity 5.8GHz Premium SMA 90 Degree FPV Antenna - Choose Polarization / Length
The singularity 5.8 is our most advanced antenna. We pushed miniaturization further than ever before, yet managed to push performances a notch higher still. It is the smallest and lightest 5.8GHz CP antenna ever made.
Specifications
- Gain: 1.9dbic
- Polarization: RHCP (Red) or LHCP (Grey)
- Cross-Polar Rejection: -15 to -30dB (1.9%)/
- Bandwidth: 5.6GHz-6.0GHz
- Radiation Efficiency: 99%
- SWR: <=1.5:1
- Weight: 1.03g to 3.55g depending on configuration
- Dimensions(head): 11.8mm dia. x 8.2mm height (PDF)
- Length: Long (120mm), Regular (62mm)
- Cable: RG405, RG178, 1.13mm
- Connector: True-SMA/90
Useful 3D Prints
- Rotor Riot HD1 mount
- iFlight Nazgul XL5V5 mount
- Lumenier QAV-S Mini Antenna Mount
- Carnage/Venom mount
- AlphaRC Fi-115 mount
Includes
1 x TrueRC Singularity 5.8GHz SMA 90 Degree Antenna - Choose Polarization / Length
US. Pat. 10,804,618
Can. Pat. 2968566
The singularity 5.8 is our most advanced antenna. We pushed miniaturization further than ever before, yet managed to push performances a notch higher still. It is the smallest and lightest 5.8GHz CP antenna ever made.
Specifications
- Gain: 1.9dbic
- Polarization: RHCP (Red) or LHCP (Grey)
- Cross-Polar Rejection: -15 to -30dB (1.9%)/
- Bandwidth: 5.6GHz-6.0GHz
- Radiation Efficiency: 99%
- SWR: <=1.5:1
- Weight: 1.03g to 3.55g depending on configuration
- Dimensions(head): 11.8mm dia. x 8.2mm height (PDF)
- Length: Long (120mm), Regular (62mm)
- Cable: RG405, RG178, 1.13mm
- Connector: True-SMA/90
Useful 3D Prints
- Rotor Riot HD1 mount
- iFlight Nazgul XL5V5 mount
- Lumenier QAV-S Mini Antenna Mount
- Carnage/Venom mount
- AlphaRC Fi-115 mount
Includes
1 x TrueRC Singularity 5.8GHz SMA 90 Degree Antenna - Choose Polarization / Length
US. Pat. 10,804,618
Can. Pat. 2968566
