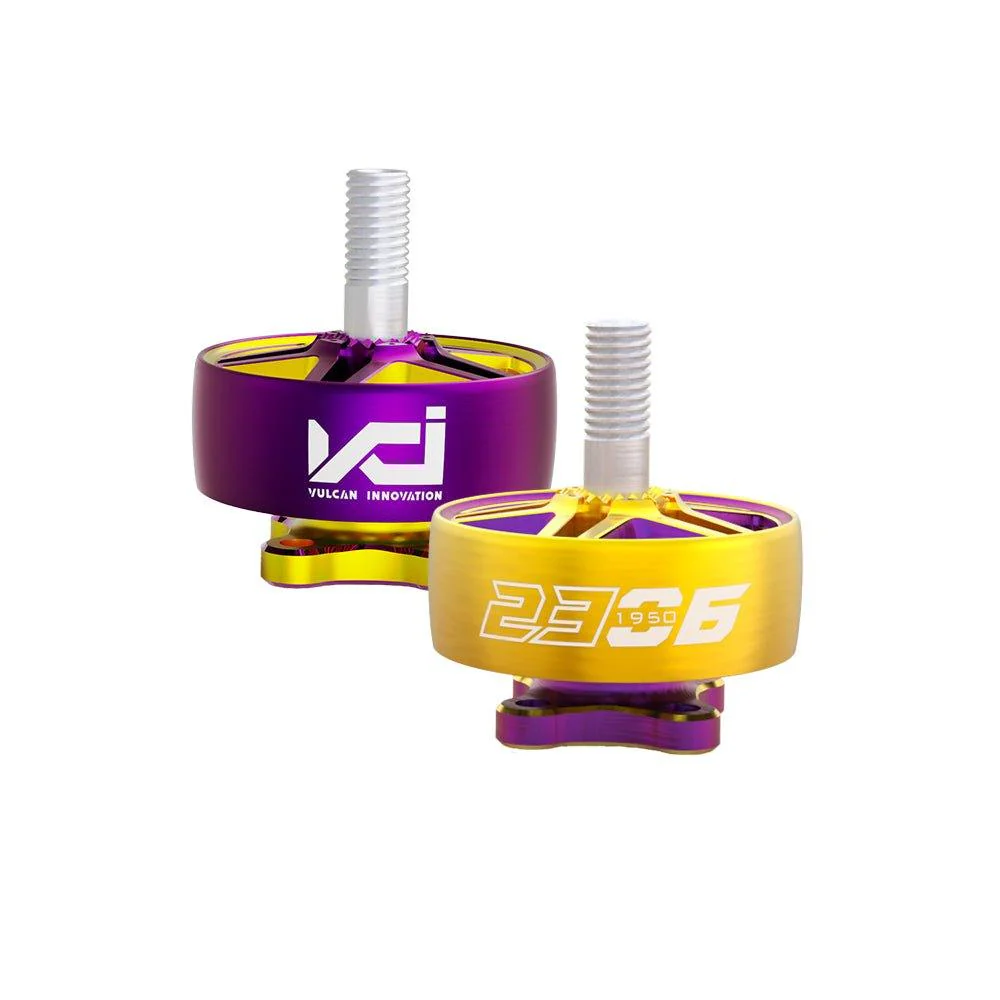

VCI Freestyle 2306 Drone Motor - Choose Kv
The VCI Freestyle 2306 High Performance Motor is designed with the world's best and toughest freestyle pilots in mind, this motor redefines speed, reliability, and precision for pilots of all levels.
Experience the future of motor technology with Vulcan Innovation. Elevate your FPV experience and be part of the elite. Welcome to a new era of speed and precision.
With 3 KV's to choose from:

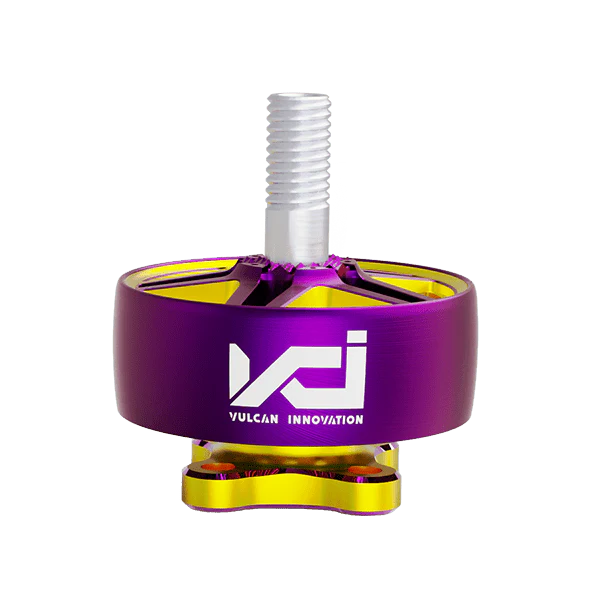

- Titan 1850Kv (Purple w/ Gold) for 6S Quads

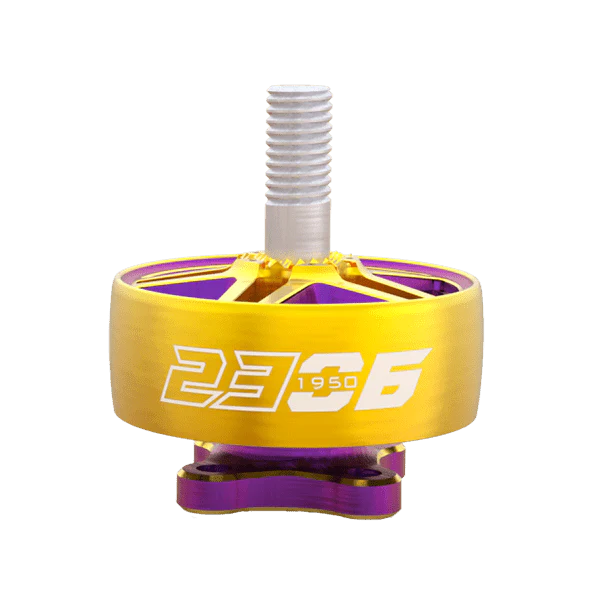

- 24k 1950Kv (Gold w/ Purple) for 6S Quads
- 24k 2600Kv (Gold w/ Purple) for 4S Quads
Vulcan Innovation stands as a beacon of excellence in motor manufacturing, boasting a team of engineers whose expertise rivals the most seasoned professionals in the industry. While they may be a new brand, they are far from new to the realms of design, engineering, and manufacturing.
FEATURES
- One of a kind stator with 0.1mm Japanese silicon steel sheet, that can lower the operating temperature to optimize the performance.
- Top-notch 240℃ enameled wire with that lowers internal resistance can improves the overcurrent capacity.
- 7075 Aviation Aluminum, TC4 Titanium Alloy Shaft, TC4 Titanium Alloy Lock Shaft Screw.
- Damping rubber ring that reduces vibrations, and prolongs the motor's life.
SPECIFICATIONS
1850Kv:
- Configuration: 12S14P
- Internal Resistance: 95mΩ
- Shaft Length: 13mm
- Rated Voltage: 6S (24V)
- Peak Current: 30.18A
- Idle Current(10V): 0.7A
- Magnets: N52SH arc
- Stator Size: 023°L6mm
- Dimensions: 028.7*31.4Lmm
- Stator Diameter: M5
- Silicone Wire: 20AWG 150mm
- Max Instantaneous Power: 724.32W
- Weight (Incl. Cable): 32.35g
1950Kv:
- Configuration: 12S14P
- Internal Resistance: 65mΩ
- Shaft Length: 13mm
- Rated Voltage: 6S (24V)
- Peak Current: 39.77A
- Idle Current(10V): 0.8A
- Magnets: N52SH arc
- Stator Size: 023°L6mm
- Dimensions: 028.7*31.4Lmm
- Stator Diameter: M5
- Silicone Wire: 20AWG 150mm
- Max Instantaneous Power: 954.48W
- Weight (Incl. Cable): 33.11g
INCLUDES
- 1 x VCI Spark Freestyle 2306 Motor High Performance FPV Drone Motor - Choose 1850Kv / 1950Kv / 2600Kv
